In many projects, air-pollution-control and plant maintenance teams ask for a pump by flow and head, then discover that the real decision sits in the surrounding wet scrubber sump, spray header, and recirculation loop. The pump is only one part of the hydraulic story. The line, valves, instruments, fittings, chemical condition, and maintenance habits decide whether the selected vertical or centrifugal scrubber recirculation pump will operate calmly or become a recurring field problem.
The common mistake is selecting the pump only from nominal flow without checking pH range, solids, nozzle pressure, and sump behavior. That shortcut feels efficient during early quotation, but it hides the condition that most often causes trouble: spray distribution becomes uneven, nozzles clog, pump materials fail early, or the scrubber loses stable removal performance. A better specification does not need to be complicated. It needs to describe the service in the same way the pump will experience it after installation.
For QEEHUA chemical pump selection, the useful question is not simply whether a model can touch acidic or alkaline scrubber liquor with possible solids and suspended salts. The useful question is whether the whole arrangement gives the pump a stable, measurable, and maintainable operating point. That is why the notes below focus on checks a buyer can actually send to a supplier before production time is committed.

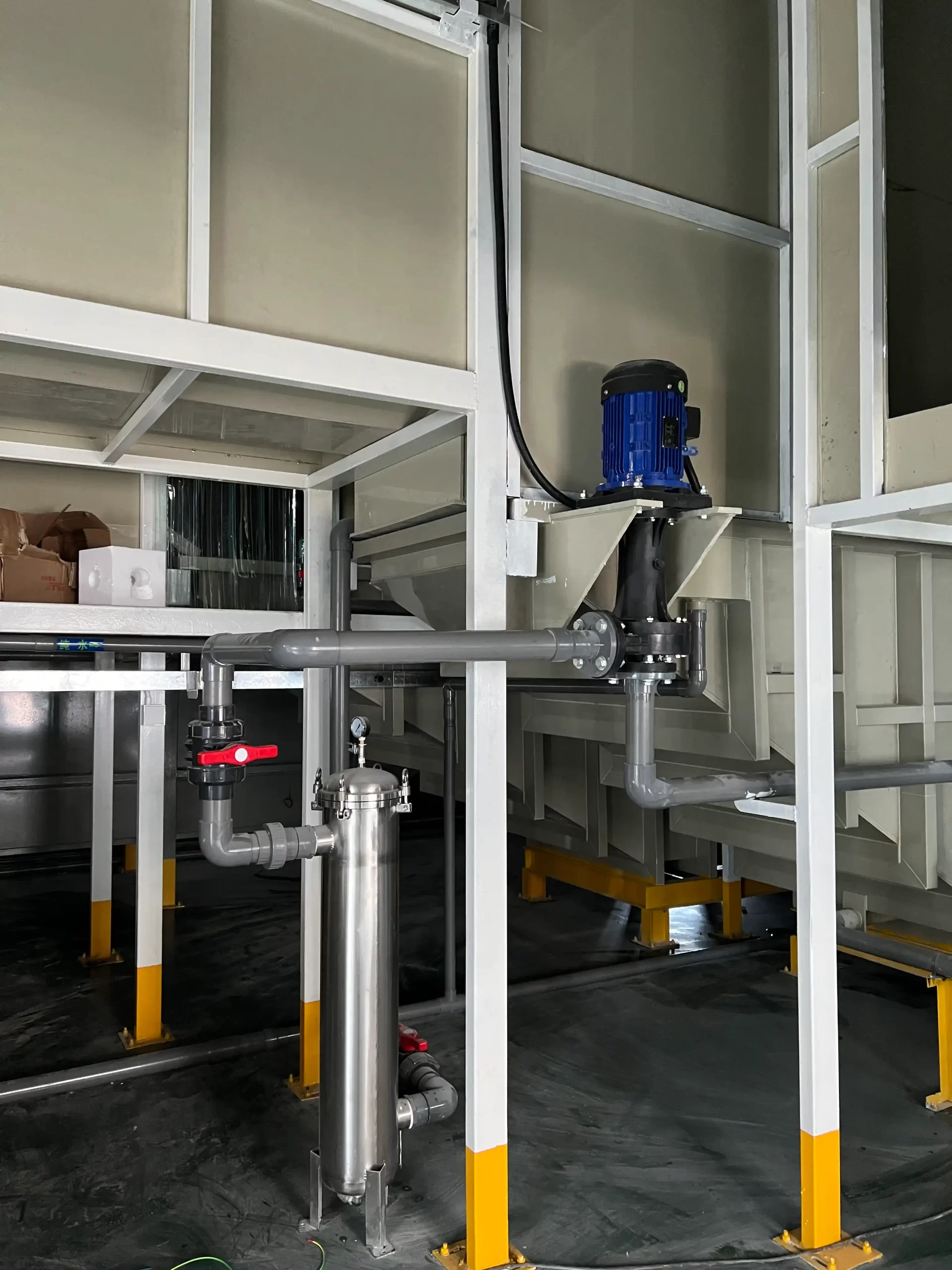

For vertical or sump-style scrubber service, this QEEHUA vertical pump assembly shop video helps buyers inspect the equipment style and service access before they discuss pH, solids, and tank level.
Scrubber pumps live in changing chemistry
A reliable selection starts by drawing the path of the liquid. For wet scrubber sump, spray header, and recirculation loop, the path includes the tank, suction condition, pump, discharge line, valves, fittings, instruments, control points, and the final process destination. When those details are missing, the supplier has to guess. A careful buyer does not need to send a perfect engineering package, but the buyer should send enough information to make the duty point believable.
The most useful early note is a short operating story: what liquid is being moved, where it starts, where it goes, how often the pump runs, and what the operators adjust during normal work. That story gives context to the numbers. It also shows whether the selected vertical or centrifugal scrubber recirculation pump is expected to run continuously, cycle by level, start against a closed valve, dose into a pressured line, or recover after cleaning and maintenance.
When the service contains acidic or alkaline scrubber liquor with possible solids and suspended salts, the material note should be specific. A phrase such as chemical liquid or acid solution is too broad. Concentration, temperature, solids, vapor, cleaning liquid, and abnormal startup condition can change the material recommendation. This is especially important for plastics and elastomers, because a material that looks safe in a room-temperature compatibility table may behave differently under heat, stress, or mixed chemicals.
Spray headers need pressure, not just flow
The pump curve is not a promise that every point on the curve will be reached in the plant. It is a reference under stated test conditions. The installed system pushes back on the pump, and that pushback changes with liquid level, pipe friction, valve position, filter condition, discharge pressure, and operating rhythm. That is why two pumps with the same nameplate power can feel very different after installation.
Good specifications translate the plant condition into a small number of practical checkpoints. The buyer should separate the normal operating point from the maximum point and the minimum controllable point. If the pump will run near the edge of its curve, the supplier should know that before selection. If the system changes during a batch, the supplier should know which condition matters most: startup, stable operation, cleaning, or end-of-batch drawdown.
This is also where internal links between design topics become useful. For example, QEEHUA vertical pump series explains one neighboring issue, while QEEHUA centrifugal pump series gives another check that can influence the same pump package. A buyer does not need to solve every issue at once, but the topics should not be treated as isolated pieces.
Field signals that the selection is incomplete
- Nozzle spray pattern weakens even though the pump motor is running.
- The pump loses flow after solids collect in the sump or strainer.
- A material change solves corrosion but creates wear or clogging problems.
- The scrubber works after cleaning but drifts during continuous operation.
Solids and salts change the maintenance plan
Most pump problems leave evidence before they become a shutdown. The evidence may be a pressure trend, unstable flow, a noisy valve, frequent replacement, temperature rise, or a maintenance note that says the pump works only after someone adjusts the line. Those clues usually point to a mismatch between the selected equipment and the real system boundary.
For air-pollution-control and plant maintenance teams, the best habit is to ask what must remain stable for the process to work. Sometimes the key value is flow. Sometimes it is pressure at a spray header, corrosion margin, suction reliability, or inspection traceability. Once the stable value is clear, the pump package can be checked against it instead of judged only by model size.
The table below is deliberately simple. It is meant to help a project team catch missing information before the quotation becomes a purchase order. A detailed calculation may still be needed for high-risk service, but a clear first table prevents the usual back-and-forth where the supplier keeps asking for details after the buyer expected a final price.
| Item to check | What it means | Why it matters |
|---|---|---|
| pH and reagent | Acidic or alkaline operating window | Controls pump material and elastomer choices |
| Solids and salts | Suspended particles, precipitates, or scaling tendency | Affects clogging, wear, and cleaning frequency |
| Spray header demand | Nozzle flow and pressure requirement | Defines the duty point more clearly than tank volume |
| Sump condition | Liquid level, vortex risk, entrained air, and access | Influences pump style and installation details |
Sump layout decides suction reliability
A supplier can only protect the buyer from the risks that are visible in the inquiry. If the inquiry omits temperature, concentration, solids, duty cycle, control method, suction arrangement, or accessory requirements, the proposal may still look complete while leaving an expensive gap. This is why a short technical schedule is often more valuable than a long email thread.
The schedule should define the required flow range, normal operating point, maximum condition, allowable materials, power supply, connection standard, control signal, and any inspection requirement. If the project is a replacement, add photos, nameplate data, failure symptoms, and the reason the old pump is being changed. If it is a new line, add the process drawing or a hand sketch that shows level, distance, height, and key valves.
For QEEHUA quotation work, this is where practical evidence matters. Clear photos of the installation, chemical tank, pipe route, and existing pump often reduce mistakes faster than another paragraph of description. The same habit applies to internal review: wastewater neutralization pump selection can be used as a companion check before startup or final order approval.
Quotation data checklist
- State pH range, temperature, suspended solids, salt buildup, and cleaning method.
- Confirm spray header pressure and nozzle flow requirement at the operating point.
- Check sump level, submergence, suction condition, and whether the pump must handle entrained air.
- Choose material and pump style based on the actual liquor, not only the gas stream name.
A better quotation note for scrubber service
Oversizing is tempting when the service is uncertain. A larger pump can appear safer because it has more flow or pressure on the curve. In chemical service, oversizing can create its own problems: excess velocity, unstable control, heat generation, throttled valves, faster wear, stronger pulsation, or poor repeatability. A better approach is to reduce uncertainty, then select with a controlled margin.
The same principle applies to undersizing. A pump that is selected only for the clean, new, open-valve condition may fail when the filter loads, the pipe ages, the tank level changes, or the plant adds another branch. The answer is not to guess a huge safety factor. The answer is to describe the credible worst case and check whether the selected pump still works there.
When wet scrubber sump, spray header, and recirculation loop is part of a larger production or treatment process, the pump should also be reviewed from the maintenance side. Can operators isolate it safely? Can the line be drained or flushed? Are spare parts available? Is there enough space to remove the pump without cutting pipe? These details do not always appear on a curve, but they decide whether the installation stays reliable.
Practical scenario
Consider a buyer who asks for a vertical or centrifugal scrubber recirculation pump for acidic or alkaline scrubber liquor with possible solids and suspended salts. The first inquiry gives only flow and a loose pressure estimate. After review, the supplier asks for the pipe route, liquid temperature, installation height, valve list, operating hours, and whether the line must run continuously or in batches. The revised duty point is different from the first estimate, but the final selection is more defensible because the hidden assumptions have been replaced with plant information.
This kind of conversation is not delay for its own sake. It is how a supplier avoids selling a pump that will be blamed later for a system problem. For the buyer, the benefit is also practical: the final quote becomes easier to compare because the competing suppliers are being asked to solve the same service, not different guessed versions of it.
One useful review habit is to separate confirmed data from assumed data. Confirmed data includes measured flow, known liquid concentration, actual pipe size, and a clear operating schedule. Assumed data includes estimated pressure, guessed valve loss, unknown solids, or a chemical name without concentration. If a supplier knows which items are assumptions, the proposal can show where the margin is being used.
Another habit is to write the abnormal condition beside the normal one. Many chemical pumps are selected for normal operation but damaged during startup, cleaning, tank changeover, clogged-filter operation, or accidental closed-valve running. A short abnormal-condition note helps the supplier recommend protection devices, alarms, or operating limits before the pump is built.
For this topic, the selection should remain tied to the actual wet scrubber sump, spray header, and recirculation loop. A model that works in a short trial line may not behave the same way after the plant adds height, accessories, solids, heat, or a different cleaning routine. That is why the best quotation notes include the operating limits as well as the desired normal point.
One useful review habit is to separate confirmed data from assumed data. Confirmed data includes measured flow, known liquid concentration, actual pipe size, and a clear operating schedule. Assumed data includes estimated pressure, guessed valve loss, unknown solids, or a chemical name without concentration. If a supplier knows which items are assumptions, the proposal can show where the margin is being used.
Another habit is to write the abnormal condition beside the normal one. Many chemical pumps are selected for normal operation but damaged during startup, cleaning, tank changeover, clogged-filter operation, or accidental closed-valve running. A short abnormal-condition note helps the supplier recommend protection devices, alarms, or operating limits before the pump is built.
For export orders, documentation should be treated as part of the equipment. Photos, material notes, curves, wiring information, packing lists, and accessory descriptions make installation easier for the receiving team. They also reduce disputes because the buyer and supplier can compare the delivered item with the approved technical record.
For this topic, the selection should remain tied to the actual wet scrubber sump, spray header, and recirculation loop. A model that works in a short trial line may not behave the same way after the plant adds height, accessories, solids, heat, or a different cleaning routine. That is why the best quotation notes include the operating limits as well as the desired normal point.
One useful review habit is to separate confirmed data from assumed data. Confirmed data includes measured flow, known liquid concentration, actual pipe size, and a clear operating schedule. Assumed data includes estimated pressure, guessed valve loss, unknown solids, or a chemical name without concentration. If a supplier knows which items are assumptions, the proposal can show where the margin is being used.
Another habit is to write the abnormal condition beside the normal one. Many chemical pumps are selected for normal operation but damaged during startup, cleaning, tank changeover, clogged-filter operation, or accidental closed-valve running. A short abnormal-condition note helps the supplier recommend protection devices, alarms, or operating limits before the pump is built.
For export orders, documentation should be treated as part of the equipment. Photos, material notes, curves, wiring information, packing lists, and accessory descriptions make installation easier for the receiving team. They also reduce disputes because the buyer and supplier can compare the delivered item with the approved technical record.
For this topic, the selection should remain tied to the actual wet scrubber sump, spray header, and recirculation loop. A model that works in a short trial line may not behave the same way after the plant adds height, accessories, solids, heat, or a different cleaning routine. That is why the best quotation notes include the operating limits as well as the desired normal point.
One useful review habit is to separate confirmed data from assumed data. Confirmed data includes measured flow, known liquid concentration, actual pipe size, and a clear operating schedule. Assumed data includes estimated pressure, guessed valve loss, unknown solids, or a chemical name without concentration. If a supplier knows which items are assumptions, the proposal can show where the margin is being used.
Another habit is to write the abnormal condition beside the normal one. Many chemical pumps are selected for normal operation but damaged during startup, cleaning, tank changeover, clogged-filter operation, or accidental closed-valve running. A short abnormal-condition note helps the supplier recommend protection devices, alarms, or operating limits before the pump is built.
For export orders, documentation should be treated as part of the equipment. Photos, material notes, curves, wiring information, packing lists, and accessory descriptions make installation easier for the receiving team. They also reduce disputes because the buyer and supplier can compare the delivered item with the approved technical record.
Check the spray header duty before blaming the pump
A scrubber pump can meet its curve and still fail the process if the spray header is partly blocked or the sump level is unstable. Start with the required liquid circulation rate, nozzle pressure, pH range, solids load, and minimum tank level. Then compare the operating point against the pump curve with a fouling allowance. The U.S. EPA wet scrubber material notes show why pressure drop and liquid distribution are part of scrubber performance. In the field, a falling spray pressure with normal motor current often points to header or nozzle trouble before it points to the pump.
Technical references used for this article
These references support the wet scrubber and spray-header checks used above. Final pump selection still depends on pH, solids, sump level, nozzle pressure, and material limits.
- U.S. EPA wet scrubber cost manual chapter
- U.S. EPA wet scrubber monitoring guidance
- EPA packed-bed wet scrubber fact sheet
For a wet scrubber recirculation pump review, send the pH range, solids level, spray header pressure, tank layout, sump level, flow target, and material limits. Email QEEHUA if the pump must be checked against both chemistry and nozzle performance.
FAQ
What information should I send before selecting a vertical or centrifugal scrubber recirculation pump?
Send the liquid name, concentration, temperature, flow range, pressure or head condition, pipe layout, suction condition, duty cycle, control method, power supply, and photos or drawings of the wet scrubber sump, spray header, and recirculation loop.
Can I choose the pump from flow and head only?
Flow and head are necessary, but they are not enough when the service involves acidic or alkaline scrubber liquor with possible solids and suspended salts. Material compatibility, installation layout, accessories, and operating rhythm can change the safe selection.
Should I add a large safety factor?
Use a controlled margin based on a credible operating case. Oversizing can create chemical-handling problems, so it is better to clarify the duty point than to hide uncertainty behind a much larger pump.
When should I ask QEEHUA for review?
Ask before the purchase order if the chemical is corrosive, the piping is long, the pressure condition is unclear, the pump will run continuously, or the installation has had repeated maintenance problems.
If your team is comparing options for a wet scrubber sump, spray header, and recirculation loop, send QEEHUA the operating data and photos before locking the model. A short review at the quotation stage is usually easier than correcting a pump, valve, material, or accessory mismatch after installation.
