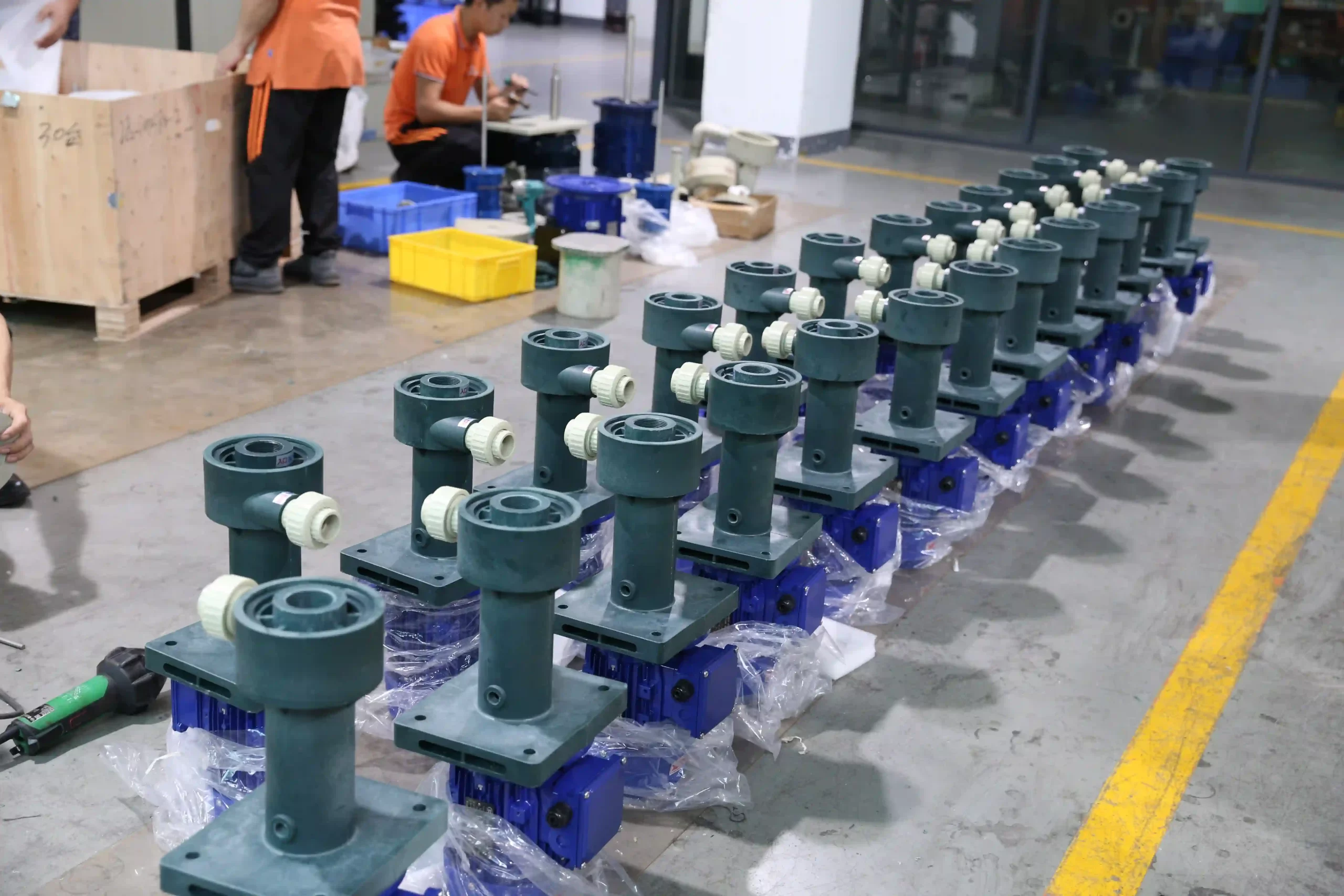

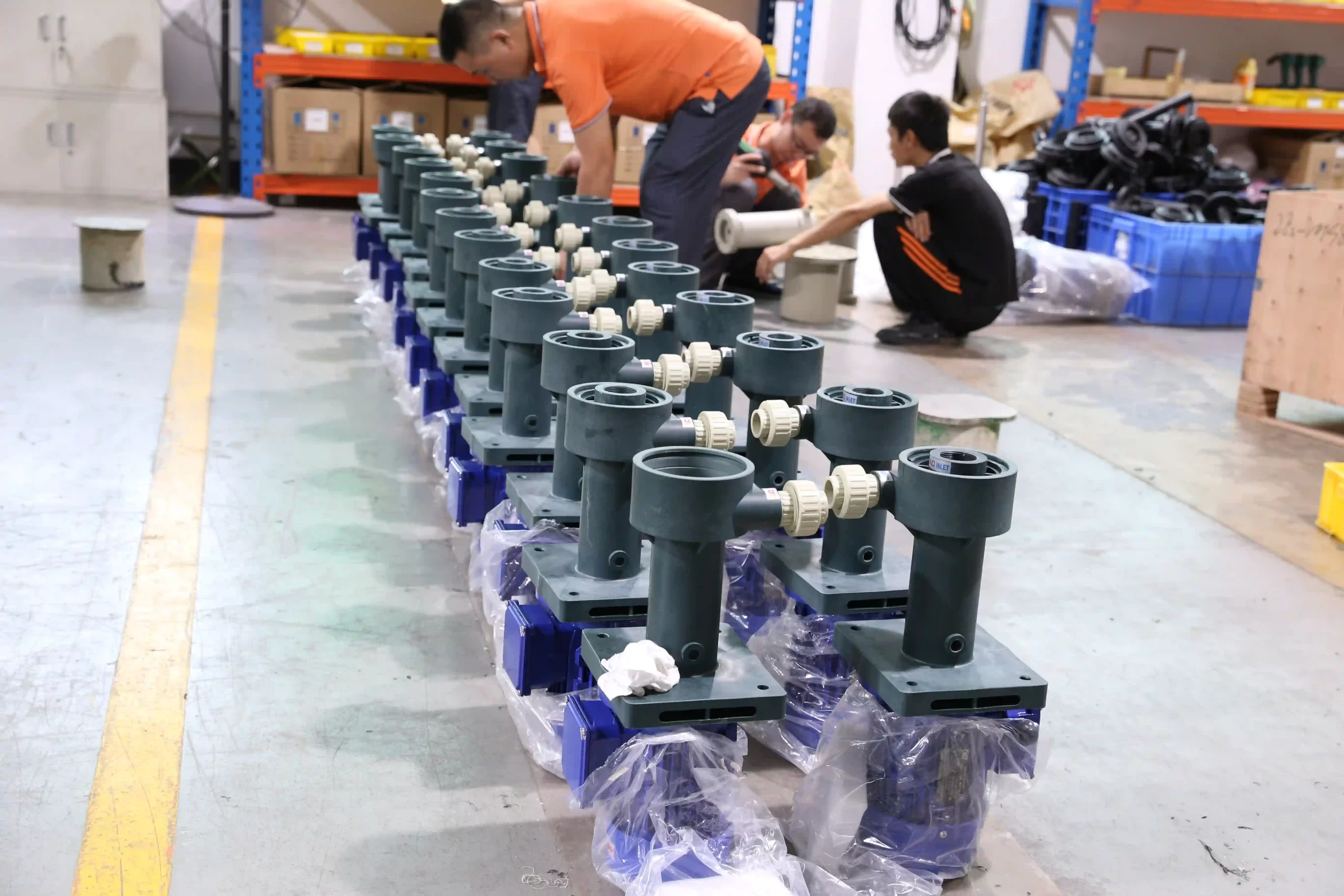

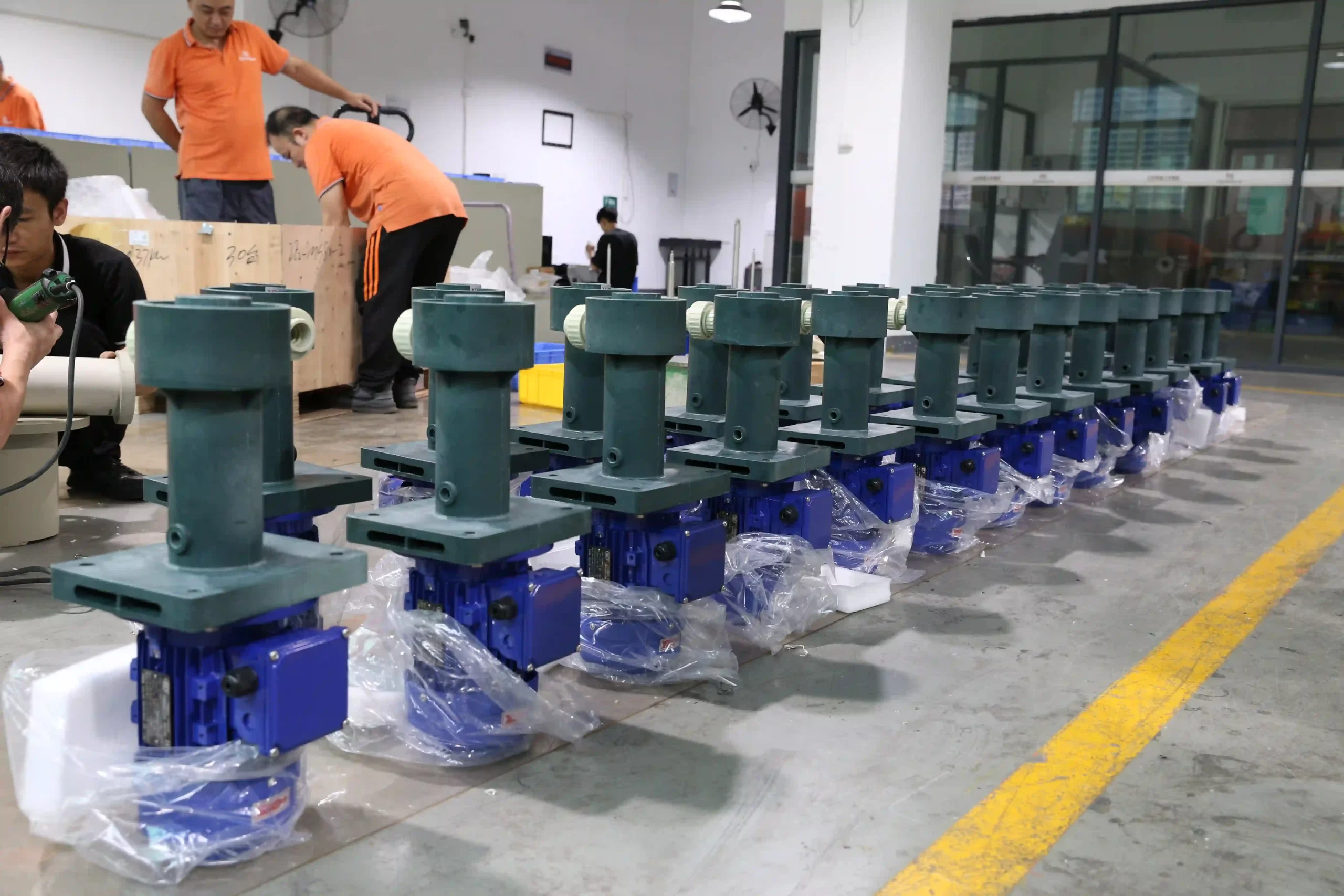

QHT Vertical Chemical Pump Series
| Material |
GFRPP / PVDF |
|---|---|
| Flow |
Max 498 L/min (29.9 m³/h) |
| Head |
Max 32 m |
| Power |
1HP-5HP |
| Temperature |
0–95 °C |
| Liquid |
Supports highly corrosive liquids |
Product Description
QHT Series is a compact vertical chemical pump for corrosive liquid circulation where vertical installation and dependable wet-process operation are required.
It is used in electroplating, PCB/FPC, spray cleaning, wastewater and exhaust-gas treatment, coating, environmental protection, and chemical process systems. Confirm model selection with QEEHUA based on liquid chemistry, specific gravity, installation depth, and operating conditions.
Parameter Table
QCQB Series Parameter Table
| Model | Standard Flow (m3/h) | Standard Head (m) | Efficiency (%) | Inlet (mm) | Outlet (mm) | NPSH (m) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| QCQB16-12-50F | 0.8 | 1.5 | 10 | 16 | 12 | 9.0 | 0.025 | 5 |
| QCQB15-15-65F | 1 | 2.8 | 17 | 15 | 15 | 6.0 | 0.18 | 7 |
| QCQB20-15-75F | 1.8 | 6 | 21 | 20 | 15 | 6.0 | 0.18 | 8 |
| QCQB25-20-100F | 2.5 | 11 | 26 | 25 | 20 | 6.0 | 0.37 | 12 |
| QCQB25-20-160F | 2 | 32 | 22 | 25 | 20 | 6.0 | 1.1 | 40 |
| QCQB32-20-110F | 5.5 | 13 | 35 | 32 | 20 | 6.0 | 0.55 | 18 |
| QCQB32-20-125F | 3.6 | 20 | 37 | 32 | 20 | 6.0 | 0.75 | 20 |
| QCQB32-20-160F | 3.6 | 32 | 38 | 32 | 20 | 5.0 | 1.5 | 50 |
| QCQB40-25-120F | 6.3 | 15 | 42 | 40 | 25 | 5.0 | 0.75 | 35 |
| QCQB40-25-130F | 6.3 | 22 | 45 | 40 | 25 | 4.0 | 1.1 | 45 |
| QCQB40-25-125F | 6.3 | 20 | 41 | 40 | 25 | 4.5 | 1.1 | 54 |
| QCQB40-25-160F | 6.3 | 32 | 36 | 40 | 25 | 5.0 | 2.2/3 | 55 |
| QCQB40-25-200F | 6.3 | 50 | 25 | 40 | 25 | 4.5 | 5.5 | 100 |
| QCQB40-40-100F | 6.0 | 11 | 43 | 40 | 40 | 6.0 | 0.55 | 20 |
| QCQB40-40-125F | 6.3 | 17.5 | 42 | 40 | 40 | 3.7 | 1.1 | 40 |
| QCQB50-32-125F | 12.5 | 20 | 42 | 50 | 32 | 3.5 | 1.5 | 45 |
| QCQB50-32-160F | 12.5 | 32 | 40 | 50 | 32 | 3.5 | 4 | 80 |
| QCQB50-32-160B | 12.5 | 32 | 40 | 50 | 32 | 3.5 | 4 | 110 |
| QCQB50-32-200F | 12.5 | 50 | 32 | 50 | 32 | 3.5 | 7.5 | 150 |
| QCQB65-50-125F | 20 | 20 | 48 | 65 | 50 | 4.0 | 4 | 100 |
| QCQB65-50-160B | 25 | 32 | 50 | 65 | 50 | 4.0 | 5.5 | 120 |
| QCQB65-50-160F | 20 | 32 | 40 | 65 | 50 | 4.0 | 5.5 | 120 |
| QCQB65-50-160FA | 17.5 | 32 | 45 | 65 | 50 | 4.0 | 4 | 90 |
| QCQB65-50-180F | 20 | 38 | 46 | 65 | 50 | 5.5 | 5.5 | 120 |
| QCQB65-40-200F | 20 | 50 | 48 | 65 | 40 | 4.0 | 11 | 180 |
| QCQB80-65-125F | 50 | 20 | 51 | 80 | 65 | 4.0 | 7.5 | 95 |
| QCQB80-65-160F | 50 | 32 | 60 | 80 | 65 | 4.0 | 11 | 180 |
| QCQB80-50-200F | 50 | 50 | 60 | 80 | 50 | 4.0 | 18.5 | 195 |
| QCQB100-80-125F | 100 | 20 | 62 | 100 | 80 | 5.0 | 11 | 180 |
| QCQB100-80-160F | 100 | 32 | 56 | 100 | 80 | 5.0 | 18.5 | 220 |
QHG Series Parameter Table
| Model | 50Hz Flow (L/min) | 60Hz Flow (L/min) | 50Hz Head (m) | 60Hz Head (m) | Specific Gravity |
|---|---|---|---|---|---|
| QHG-40012 | 250 | 245 | 13 | 12 | <1.2 |
| QHG-40022 | 316 | 313 | 16 | 16 | <1.2 |
| QHG-40032 | 392 | 417 | 20 | 23 | <1.2 |
| QHG-50032 | 625 | 633 | 21 | 20 | <1.2 |
| QHG-50052 | 710 | 733 | 26 | 30 | <1.2 |
| QHG-65052 | 883 | 893 | 21 | 22 | <1.2 |
| QHG-65072 | 1000 | 967 | 27 | 25 | <1.2 |
| QHG-65102 | 1057 | 1113 | 30 | 34 | <1.2 |
| QHG-100102 | 1697 | 1677 | 25 | 25 | <1.2 |
| QHG-100152 | 1918 | 1967 | 32 | 32 | <1.2 |
Source: QHG product sheet. Medium temperature 0-90 °C; working environment -5-50 °C; maximum working pressure 5 bar.
QHS Series Parameter Table
| Model | Power (HP) | Power (kW) | In & Outlet Size | Rotational Speed (r/min) | Max Head 50Hz (m) | Max Flow 50Hz (L/min) | Max Flow 50Hz (m3/h) |
|---|---|---|---|---|---|---|---|
| QHS-25-0.5 | 0.5 | 0.37 | DN25 | 2850 | 14 | 150 | 9 |
| QHS-25-1 | 1 | 0.75 | DN25 | 2850 | 14 | 200 | 12 |
| QHS-40-1 | 1 | 0.75 | DN40 | 2850 | 14 | 250 | 15 |
| QHS-40-2 | 2 | 1.5 | DN40 | 2850 | 17.5 | 383 | 23 |
| QHS-50-2 | 2 | 1.5 | DN50 | 2850 | 17.5 | 500 | 30 |
| QHS-50-3 | 3 | 2.2 | DN50 | 2850 | 20 | 500 | 30 |
| QHS-65-3 | 3 | 2.2 | DN65 | 2850 | 20 | 600 | 36 |
| QHS-50-5 | 5 | 3.7 | DN50 | 2850 | 23 | 633 | 38 |
| QHS-65-5 | 5 | 3.7 | DN65 | 2850 | 23 | 700 | 42 |
| QHS-80-7.5 | 7.5 | 5.5 | DN80 | 2850 | 27 | 1033 | 62 |
| QHS-100-7.5 | 7.5 | 5.5 | DN100 | 2850 | 27 | 1533 | 92 |
| QHS-80-10 | 10 | 7.5 | DN80 | 2850 | 31 | 1033 | 62 |
| QHS-100-10 | 10 | 7.5 | DN100 | 2850 | 27 | 1800 | 108 |
| QHS-100-15 | 15 | 11 | DN100 | 2850 | 31 | 1866 | 112 |
| QHS-125-15 | 15 | 11 | DN125 | 2850 | 27 | 2700 | 162 |
| QHS-100-20 | 20 | 15 | DN100 | 2850 | 35 | 2133 | 128 |
| QHS-125-20 | 20 | 15 | DN125 | 2850 | 27 | 3050 | 183 |
Source: QHS product sheet. Medium temperature 0-80 °C; medium specific gravity 1-2; working environment -5-50 °C; maximum working pressure 5 bar.
QHB Series Parameter Table
| Model | Inlet / Outlet (mm) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | 50Hz Head (m) | 60Hz Head (m) | Priming Head (m) | Specific Gravity | Power (HP) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QHB-40002 | 40/40 | 188 | 11.3 | 170 | 10.2 | 7 | 6 | 4 | <1.2 | 1/2 | 0.37 | 20.6 |
| QHB-40012 | 40/40 | 216 | 13 | 208 | 12.5 | 9 | 8 | 5 | <1.2 | 1 | 0.75 | 23.4 |
| QHB-40022 | 40/40 | 308 | 18.5 | 303 | 18.2 | 16 | 16 | 5 | <1.2 | 2 | 1.5 | 29 |
| QHB-40032 | 40/40 | 355 | 21.3 | 342 | 20.5 | 19 | 18 | 5 | <1.2 | 3 | 2.2 | 30.5 |
| QHB-50032 | 50/50 | 488 | 29.3 | 482 | 28.9 | 17 | 18 | 5 | <1.2 | 3 | 2.2 | 30.8 |
| QHB-50052 | 50/50 | 507 | 30.4 | 538 | 32.3 | 24 | 27 | 5 | <1.2 | 5 | 4 | 42.3 |
| QHB-75052 | 75/75 | 935 | 56.1 | 928 | 55.7 | 22 | 22 | 5 | <1.2 | 5 | 4 | 44.1 |
| QHB-75072 | 75/75 | 970 | 58.2 | 950 | 57 | 27 | 29 | 5 | <1.2 | 7.5 | 5.5 | 64.1 |
| QHB-75102 | 75/75 | 1007 | 60.4 | 1002 | 60.1 | 28 | 35 | 5 | <1.2 | 10 | 7.5 | 68.6 |
QHA Series Parameter Table
| Confirmed material | PP / PVDF |
|---|---|
| Confirmed temperature range | PP <70 °C; PVDF <100 °C |
| Confirmed liquid compatibility | Weak acid and alkali; strong acid |
| Confirmed structure | Dry shaft seal with inlet filter device |
QHD Series Parameter Table
| Confirmed material | GFRPP / PVDF / CFRETFE |
|---|---|
| Confirmed temperature range | GFRPP <70 °C; PVDF <100 °C; CFRETFE <150 °C |
| Confirmed liquid compatibility | Weak acid and alkali; strong acid; strong acid and alkali |
| Confirmed operation | Supports idling in liquid shortage conditions |
QHV Series Parameter Table
| Model | Inlet & Outlet Size | Power (HP) | Power (kW) | Max Head 50Hz (m) | Max Flow 50Hz (L/min) | Max Flow 50Hz (m3/h) | Motor Speed (r/min) |
|---|---|---|---|---|---|---|---|
| QHV-25SK-0.5 | DN25 | 0.5 | 0.37 | 11.5 | 100 | 6 | 2850 |
| QHV-25SK-1 | DN25 | 1 | 0.75 | 11.5 | 150 | 9 | 2850 |
| QHV-40SK-1 | DN40 | 1 | 0.75 | 11.5 | 200 | 12 | 2850 |
| QHV-40SK-2 | DN40 | 2 | 1.5 | 17 | 300 | 18 | 2850 |
| QHV-50SK-2 | DN50 | 2 | 1.5 | 17 | 366 | 22 | 2850 |
| QHV-50SK-3 | DN50 | 3 | 2.2 | 17 | 416 | 25 | 2850 |
| QHV-50SK-5 | DN50 | 5 | 4.0 | 23 | 600 | 36 | 2850 |
| QHV-65SK-3 | DN65 | 3 | 2.2 | 17 | 483 | 29 | 2850 |
| QHV-65SK-5 | DN65 | 5 | 4.0 | 23 | 666 | 40 | 2850 |
| QHV-80SK-7.5 | DN80 | 7.5 | 5.5 | 27 | 800 | 48 | 2850 |
| QHV-80SK-10 | DN80 | 10 | 7.5 | 27 | 933 | 56 | 2850 |
| QHV-100SK-7.5 | DN100 | 7.5 | 5.5 | 23 | 1666 | 100 | 2850 |
| QHV-100SK-10 | DN100 | 10 | 7.5 | 27.5 | 1666 | 100 | 2850 |
| QHV-100SK-15 | DN100 | 15 | 11 | 31 | 1800 | 108 | 2850 |
| QHV-100SK-20 | DN100 | 20 | 15 | 31 | 2100 | 126 | 2850 |
| QHV-125SK-15 | DN125 | 15 | 11 | 22.5 | 2633 | 158 | 2850 |
| QHV-125SK-20 | DN125 | 20 | 15 | 27 | 2633 | 158 | 2850 |
QHT Series Parameter Table
| Model | Outlet (mm) | Power (HP) | Power (kW) | 50Hz Head (m) | 60Hz Head (m) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| QHT-40SK-1 | 40 | 1 | 0.75 | 11 | 11 | 228 | 13.7 | 196 | 11.8 | 20.4 |
| QHT-40SK-2 | 40 | 2 | 1.5 | 17 | 15 | 388 | 23.3 | 336 | 20.2 | 24.4 |
| QHT-40SK-3 | 40 | 3 | 2.2 | 20 | 22 | 313 | 18.8 | 301 | 18.1 | 31.4 |
| QHT-40SK-5 | 40 | 5 | 4 | 23 | 30 | 336 | 20.2 | 406 | 24.4 | 37.6 |
| QHT-50SK-5 | 50 | 5 | 4 | 21 | 32 | 463 | 27.8 | 498 | 29.9 | 37.4 |
QP Series Parameter Table
| Model | Outlet Caliber (mm) | Power (HP) | Power (kW) | 50Hz Head (m) | 60Hz Head (m) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| QP-25SK-1/2 | 25 | 1/2 | 0.37 | 9.5 | 7.6 | 121 | 7.3 | 93 | 5.6 | 14.9 |
| QP-40SK-1 | 40 | 1 | 0.75 | 13 | 10 | 216 | 13.0 | 206 | 12.4 | 19.7 |
| QP-40SK-2 | 40 | 2 | 1.5 | 16 | 17 | 245 | 14.7 | 273 | 16.4 | 19.7 |
QHH Series Parameter Table
| Model | Inlet & Outlet Caliber (mm) | Power (HP) | Power (kW) | Max Head (m) | Max Flow (L/min) | Max Flow (m3/h) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| QHH-40SK-1 | 50/40 | 1 | 0.75 | 15 | 100 | 6 | 22 |
| QHH-40SK-2 | 50/40 | 2 | 1.5 | 22.5 | 155 | 9.3 | 29 |
| QHH-40SK-3 | 50/40 | 3 | 2.2 | 26.5 | 250 | 15 | 30 |
| QHH-50SK-5.5 | 65/50 | 5.5 | 4 | 29 | 275 | 16.5 | 42 |
| QHH-50SK-7.5 | 65/50 | 7.5 | 5.5 | 35 | 580 | 34.8 | 59 |
| QHH-50SK-10 | 65/50 | 10 | 7.5 | 38 | 650 | 39 | 65 |
QFC Series Parameter Table
| Model | Inlet & Outlet (mm) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | 50Hz Head (m) | 60Hz Head (m) | Range of S.G | Power (HP) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QFC32-25-125-2 | 32/25 | 60 | 3.6 | 72 | 4.3 | 20 | 28.5 | <1.15 | 2 | 1.5 | 85 |
| QFC32-20-160-2 | 32/20 | 60 | 3.6 | 72 | 4.3 | 32 | 46 | <1.15 | 3 | 2.2 | 90 |
| QFC40-25-125-2 | 40/25 | 105 | 6.3 | 126 | 7.6 | 20 | 28.5 | <1.15 | 2 | 1.5 | 78 |
| QFC40-25-160-2 | 40/25 | 105 | 6.3 | 126 | 7.6 | 32 | 46 | <1.15 | 3 | 2.2 | 92 |
| QFC40-25-200-2 | 40/25 | 105 | 6.3 | 126 | 7.6 | 50 | 72 | <1.15 | 7.5 | 5.5 | 147 |
| QFC40-25-250-2 | 40/25 | 105 | 6.3 | 126 | 7.6 | 80 | 115 | <1.15 | 15 | 11 | 233 |
| QFC50-32-125-2 | 50/32 | 208 | 12.5 | 250 | 15 | 20 | 28.5 | <1.15 | 3 | 2.2 | 90 |
| QFC50-32-160-2 | 50/32 | 208 | 12.5 | 250 | 15 | 32 | 46 | <1.15 | 5.5 | 4 | 125 |
| QFC50-32-200-2 | 50/32 | 208 | 12.5 | 250 | 15 | 50 | 72 | <1.15 | 10 | 7.5 | 166 |
| QFC50-32-250-2 | 50/32 | 208 | 12.5 | 250 | 15 | 80 | 115 | <1.15 | 15 | 11 | 235 |
| QFC50-32-315-2 | 50/32 | 208 | 12.5 | 250 | 15 | 100 | 144 | <1.15 | 40 | 30 | 300 |
| QFC65-50-125-2 | 65/50 | 416 | 25 | 500 | 30 | 20 | 28.5 | <1.15 | 5.5 | 4 | 99 |
| QFC65-50-160-2 | 65/50 | 416 | 25 | 500 | 30 | 32 | 46 | <1.15 | 7.5 | 5.5 | 146 |
| QFC65-40-200-2 | 65/40 | 416 | 25 | 500 | 30 | 50 | 72 | <1.15 | 15 | 11 | 214 |
| QFC65-40-250-2 | 65/40 | 416 | 25 | 500 | 30 | 80 | 115 | <1.15 | 25 | 18.5 | 297 |
| QFC80-65-125-2 | 80/65 | 833 | 50 | 1000 | 60 | 20 | 28.5 | <1.15 | 7.5 | 5.5 | 146 |
| QFC80-65-160-2 | 80/65 | 833 | 50 | 1000 | 60 | 32 | 46 | <1.15 | 15 | 11 | 214 |
| QFC80-50-200-2 | 80/50 | 833 | 50 | 1000 | 60 | 50 | 72 | <1.15 | 20 | 15 | 230 |
| QFC80-50-250-2 | 80/50 | 833 | 50 | 1000 | 60 | 80 | 115 | <1.15 | 40 | 30 | 393 |
| QFC100-80-125-2 | 100/80 | 1666 | 100 | 2000 | 120 | 20 | 28.5 | <1.15 | 15 | 11 | 215 |
| QFC100-80-160-2 | 100/80 | 1666 | 100 | 2000 | 120 | 32 | 46 | <1.15 | 20 | 15 | 254 |
| QFC100-65-200-2 | 100/65 | 1666 | 100 | 2000 | 120 | 50 | 72 | <1.15 | 40 | 30 | 382 |
| QFC100-65-250-2 | 100/65 | 1666 | 100 | 2000 | 120 | 80 | 115 | <1.15 | 60 | 45 | 540 |
| QFC125-80-160-2 | 125/80 | 2666 | 160 | 3200 | 192 | 32 | 46 | <1.15 | 40 | 30 | 477 |
| QFC125-100-200-2 | 125/100 | 3333 | 200 | 4000 | 240 | 50 | 72 | <1.15 | 75 | 55 | 630 |
| QFC40-25-125-4 | 40/25 | 53 | 3.2 | 63 | 3.8 | 5 | 7 | <1.15 | 0.75 | 0.55 | 70 |
| QFC40-25-160-4 | 40/25 | 53 | 3.2 | 63 | 3.8 | 8 | 11.5 | <1.15 | 0.75 | 0.55 | 75 |
| QFC40-25-200-4 | 40/25 | 53 | 3.2 | 63 | 3.8 | 12.5 | 18 | <1.15 | 0.75 | 0.55 | 80 |
| QFC40-25-250-4 | 40/25 | 53 | 3.2 | 63 | 3.8 | 20 | 28.5 | <1.15 | 2 | 1.5 | 85 |
| QFC50-32-125-4 | 50/32 | 105 | 6.3 | 126 | 7.6 | 5 | 7 | <1.15 | 0.75 | 0.55 | 73 |
| QFC50-32-160-4 | 50/32 | 105 | 6.3 | 126 | 7.6 | 8 | 11.5 | <1.15 | 0.75 | 0.55 | 91 |
| QFC50-32-200-4 | 50/32 | 105 | 6.3 | 126 | 7.6 | 12.5 | 18 | <1.15 | 1.5 | 1.1 | 105 |
| QFC50-32-250-4 | 50/32 | 105 | 6.3 | 126 | 7.6 | 20 | 28.5 | <1.15 | 2 | 1.5 | 128 |
| QFC50-32-315-4 | 50/32 | 105 | 6.3 | 126 | 7.6 | 32 | 46 | <1.15 | 7.5 | 5.5 | 150 |
| QFC65-40-125-4 | 65/50 | 208 | 12.5 | 250 | 15 | 5 | 7 | <1.15 | 0.75 | 0.55 | 80 |
| QFC65-50-160-4 | 65/50 | 208 | 12.5 | 250 | 15 | 8 | 11.5 | <1.15 | 1.5 | 1.1 | 92 |
| QFC65-40-200-4 | 65/40 | 208 | 12.5 | 250 | 15 | 12.5 | 18 | <1.15 | 2 | 1.5 | 110 |
| QFC65-40-250-4 | 65/40 | 208 | 12.5 | 250 | 15 | 20 | 28.5 | <1.15 | 4 | 3 | 140 |
| QFC80-65-125-4 | 80/65 | 416 | 25 | 500 | 30 | 5 | 7 | <1.15 | 1.5 | 1.1 | 110 |
| QFC80-65-160-4 | 80/65 | 416 | 25 | 500 | 30 | 8 | 11.5 | <1.15 | 2 | 1.5 | 110 |
| QFC80-50-200-4 | 80/50 | 416 | 25 | 500 | 30 | 12.5 | 18 | <1.15 | 3 | 2.2 | 120 |
| QFC80-50-250-4 | 80/50 | 416 | 25 | 500 | 30 | 20 | 28.5 | <1.15 | 5.5 | 4 | 140 |
| QFC100-80-125-4 | 100/80 | 833 | 50 | 1000 | 60 | 5 | 7 | <1.15 | 2 | 1.5 | 130 |
| QFC100-80-160-4 | 100/80 | 833 | 50 | 1000 | 60 | 8 | 11.5 | <1.15 | 3 | 2.2 | 140 |
| QFC100-65-200-4 | 100/65 | 833 | 50 | 1000 | 60 | 12.5 | 18 | <1.15 | 5.5 | 4 | 320 |
| QFC100-65-250-4 | 100/65 | 833 | 50 | 1000 | 60 | 20 | 28.5 | <1.15 | 10 | 7.5 | 350 |
| QFC125-80-160-4 | 125/80 | 1333 | 80 | 1600 | 96 | 8 | 11.5 | <1.15 | 5.5 | 4 | 300 |
| QFC125-100-200-4 | 125/100 | 1666 | 100 | 2000 | 120 | 12.5 | 18 | <1.15 | 10 | 7.5 | 375 |
| QFC125-100-250-4 | 125/100 | 1666 | 100 | 2000 | 120 | 20 | 28.5 | <1.15 | 20 | 15 | 386 |
| QFC125-100-315-4 | 125/100 | 1666 | 100 | 2000 | 120 | 32 | 46 | <1.15 | 25 | 18.5 | 480 |
| QFC150-125-250-4 | 150/125 | 3333 | 200 | 4000 | 240 | 20 | 28.5 | <1.15 | 30 | 22 | 500 |
| QFC150-125-315-4 | 150/125 | 3333 | 200 | 4000 | 240 | 32 | 46 | <1.15 | 60 | 45 | 660 |
| QFC150-125-400-4 | 150/125 | 3333 | 200 | 4000 | 240 | 50 | 72 | <1.15 | 100 | 75 | 860 |
| QFC200-150-250-4 | 200/150 | 6666 | 400 | 8000 | 480 | 20 | 28.5 | <1.15 | 60 | 45 | 680 |
| QFC200-150-315-4 | 200/150 | 6666 | 400 | 8000 | 480 | 32 | 46 | <1.15 | 100 | 75 | 940 |
| QFC200-150-400-4 | 200/150 | 6666 | 400 | 8000 | 480 | 50 | 72 | <1.15 | 150 | 110 | 1160 |
| QFC250-200-250-4 | 250/200 | 10833 | 650 | 13000 | 780 | 20 | 28.5 | <1.15 | 100 | 75 | 1100 |
| QFC250-200-315-4 | 250/200 | 10833 | 650 | 13000 | 780 | 32 | 46 | <1.15 | 150 | 110 | 1480 |
| QFC300-250-315-4 | 300/250 | 16666 | 1000 | 20000 | 1200 | 32 | 46 | <1.15 | 215 | 160 | 2160 |
QHAC Series Parameter Table
| Model | Inlet/Outlet (mm) | Length (mm) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | 50Hz Head (m) | 60Hz Head (m) | Phase | Power (HP) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QHAC-15SK-50 | 15 | 216 | 20 | 1.2 | 22 | 1.3 | 2.7 | 3.5 | 1 | 1/15 | 0.05 | 8.5 |
| QHAC-15SK-90 | 15 | 216 | 22 | 1.3 | 25 | 1.5 | 3.0 | 4.5 | 1 | 1/8 | 0.09 | 8.5 |
| QHAC-15SK-120 | 15 | 216 | 32 | 1.9 | 37 | 2.2 | 3.5 | 5 | 1 | 1/6 | 0.12 | 8.5 |
| QHAC-20SK-180 | 20 | 285 | 52 | 3.1 | 57 | 3.4 | 7 | 9 | 1/3 | 1/4 | 0.18 | 11.5 |
| QHAC-20SK-250 | 20 | 285 | 55 | 3.3 | 72 | 4.3 | 8 | 11 | 1/3 | 1/3 | 0.25 | 14.5 |
| QHAC-25SK-370 | 25 | 285 | 78 | 4.7 | 78 | 4.7 | 8 | 8 | 1/3 | 1/2 | 0.37 | 15.5 |
| QHAC-40SK-1 | 40 | 317/410 | 307 | 18.4 | 222 | 13.3 | 11 | 7.7 | 3 | 1 | 0.75 | 22 |
| QHAC-40SK-2 | 40 | 317/410 | 382 | 22.9 | 340 | 20.4 | 15 | 14 | 3 | 2 | 1.5 | 26 |
| QHAC-40SK-3 | 40 | 317/410 | 437 | 26.2 | 438 | 26.3 | 20 | 19 | 3 | 3 | 2.2 | 29 |
CDLKF Series Parameter Table
| Confirmed material | SUS304 / SUS316 |
|---|---|
| Confirmed temperature range | -15-120 °C |
| Selection note | Confirm model-specific flow, head, stage count, motor power, and installation conditions before publishing a full table. |
| Model Number | Inlet/Outlet (mm) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | 50Hz Head (m) | 60Hz Head (m) | Specific Gravity | Power (HP) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MDH-250 | 25/25 | 100 | 6 | 100 | 6 | 16 | 17 | <1.2 | 0.5 | 0.37 | 11.7 |
| MDH-251 | 25/25 | 125 | 7.5 | 125 | 7.5 | 22 | 24 | <1.2 | 1 | 0.75 | 15.6 |
| MDH-440 | 40/40 | 230 | 13.8 | 200 | 12 | 13 | 12 | <1.2 | 0.5 | 0.37 | 12 |
| MDH-441 | 40/40 | 233 | 14 | 250 | 15 | 16.5 | 18 | <1.2 | 1 | 0.75 | 17.8 |
| MDH-452 | 50/40 | 366 | 22 | 366 | 22 | 22 | 22 | <1.2 | 2 | 1.5 | 29.2 |
| MDH-453 | 50/40 | 433 | 26 | 450 | 27 | 23.5 | 25 | <1.2 | 3 | 2.2 | 29.5 |
| MDH-455 | 50/40 | 466 | 28 | 533 | 32 | 26.5 | 32.5 | <1.2 | 5 | 4 | 29.4 |
| MDH-552 | 50/50 | 441 | 26.5 | 465 | 27.9 | 24.5 | 22 | <1.2 | 2 | 1.5 | 29.7 |
| MDH-553 | 50/50 | 533 | 32 | 563 | 33.8 | 25 | 26.5 | <1.2 | 3 | 2.2 | 44.8 |
| MDH-555 | 50/50 | 600 | 36 | 666 | 40 | 27 | 32.5 | <1.2 | 5 | 4 | 45.4 |
| MDH-563 | 65/50 | 600 | 36 | 600 | 36 | 17 | 17.5 | <1.2 | 3 | 2.2 | 29.4 |
| MDH-565 | 65/50 | 700 | 42 | 700 | 42 | 24 | 25 | <1.2 | 5 | 4 | 45 |
| MDH-663 | 65/65 | 625 | 37.5 | 635 | 37.5 | 13.5 | 17 | <1.2 | 3 | 2.2 | 29.7 |
| MDH-665 | 65/65 | 750 | 45 | 708 | 42.5 | 20.5 | 20.5 | <1.2 | 5 | 4 | 45.5 |
QMC/QMP stainless steel magnetic pump data from the product sheet. Select a model with capacity not smaller than the required duty point.
| Model Number | Flow Range (m3/h) | Head Range (m) | Efficiency (%) | Inlet (mm) | Outlet (mm) | NPSH (m) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| QMC/QMP25-20-125 | 1.5 / 2 / 3.2 | 22 / 20 / 18 | 24 | 25 | 20 | 2.0 | 0.75 | 55 |
| QMC/QMP25-20-160 | 1.5 / 2 / 3.2 | 33 / 32 / 30 | 22 | 25 | 20 | 2.0 | 1.1 | 60 |
| QMC/QMP25-20-200 | 1.5 / 2 / 3.2 | 51 / 50 / 47 | 20 | 25 | 20 | 2.0 | 2.2 | 85 |
| QMC/QMP32-20-125 | 2.5 / 3.6 / 5 | 22 / 20 / 18 | 19 | 32 | 20 | 2.0 | 1.1 | 60 |
| QMC/QMP32-20-160 | 2.5 / 3.6 / 5 | 33 / 32 / 30 | 27 | 32 | 20 | 2.0 | 1.5 | 70 |
| QMC/QMP32-20-200 | 2.5 / 3.6 / 5 | 51 / 50 / 47 | 24 | 32 | 20 | 2.5 | 3 | 100 |
| QMC/QMP40-25-125 | 4 / 6.3 / 7.5 | 21 / 20 / 18 | 36 | 40 | 25 | 2.5 | 1.5 | 65 |
| QMC/QMP40-25-160 | 4 / 6.3 / 7.5 | 33 / 32 / 28 | 33 | 40 | 25 | 2.5 | 2.2 | 75 |
| QMC/QMP40-25-200 | 4 / 6.3 / 7.5 | 51 / 50 / 47 | 29 | 40 | 25 | 2.5 | 5.5 | 120 |
| QMC/QMP40-25-250 | 4 / 6.3 / 7.5 | 81 / 80 / 78 | 25 | 40 | 25 | 2.5 | 7.5 | 165 |
| QMC/QMP50-32-125 | 7 / 12.5 / 15 | 22 / 20 / 16 | 47 | 50 | 32 | 2.5 | 2.2 | 70 |
| QMC/QMP50-32-160 | 7 / 12.5 / 15 | 33 / 32 / 30 | 43 | 50 | 32 | 2.5 | 4 | 120 |
| QMC/QMP50-32-200 | 7 / 12.5 / 15 | 51 / 50 / 47 | 40 | 50 | 32 | 2.5 | 7.5 | 155 |
| QMC/QMP50-32-250 | 7 / 12.5 / 15 | 82 / 80 / 77 | 35 | 50 | 32 | 2.5 | 11 | 220 |
| QMC/QMP65-50-125 | 15 / 25 / 35 | 22 / 20 / 18 | 58 | 65 | 50 | 2.5 | 3 | 85 |
| QMC/QMP65-50-160 | 15 / 25 / 35 | 33 / 32 / 28 | 50 | 65 | 50 | 2.5 | 5.5 | 135 |
| QMC/QMP65-40-200 | 15 / 25 / 35 | 51 / 50 / 45 | 45 | 65 | 40 | 2.5 | 11 | 190 |
| QMC/QMP65-40-250 | 15 / 25 / 35 | 82 / 80 / 72 | 40 | 65 | 40 | 2.5 | 15 | 250 |
| QMC/QMP80-65-125 | 35 / 50 / 60 | 22 / 20 / 18 | 54 | 80 | 65 | 3.0 | 5.5 | 105 |
| QMC/QMP80-65-160 | 35 / 50 / 60 | 33 / 32 / 27 | 52 | 80 | 65 | 3.0 | 11 | 170 |
| QMC/QMP80-50-200 | 35 / 50 / 60 | 52 / 50 / 45 | 46 | 80 | 50 | 3.0 | 15 | 210 |
| QMC/QMP80-50-250 | 35 / 50 / 60 | 82 / 80 / 75 | 43 | 80 | 50 | 3.5 | 30 | 360 |
| QMC/QMP100-80-125 | 65 / 100 / 110 | 22 / 20 / 18 | 63 | 100 | 80 | 3.5 | 11 | 175 |
| QMC/QMP100-80-160 | 65 / 100 / 120 | 35 / 32 / 26 | 50 | 100 | 80 | 3.5 | 15 | 215 |
| QMC/QMP100-65-200 | 65 / 100 / 120 | 51 / 50 / 43 | 46 | 100 | 65 | 3.5 | 30 | 350 |
| QMC/QMP125-80-160 | 100 / 160 / 180 | 38 / 32 / 26 | 60 | 125 | 80 | 4.0 | 30 | 410 |
| QMC/QMP125-100-200 | 120 / 200 / 220 | 55 / 50 / 45 | 55 | 125 | 100 | 4.5 | 55 | 590 |
QHM model data from the corrosion-resistant magnetic drive pump sheet. Use frequency, flow and head together for preliminary selection.
| Model Number | Material | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | 50Hz Head (m) | 60Hz Head (m) | Specific Gravity |
|---|---|---|---|---|---|---|---|---|
| QHM-250 | PPH / PVDF / CFRETFE | 92 | 5.5 | 100 | 6 | 15 | 17 | <1.2 |
| QHM-251 | PPH / PVDF / CFRETFE | 117 | 7 | 122 | 7.3 | 20 | 24 | <1.2 |
| QHM-440 | PPH / PVDF / CFRETFE | 223 | 13.4 | 220 | 13.2 | 12 | 11 | <1.2 |
| QHM-441 | PPH / PVDF / CFRETFE | 243 | 14.6 | 265 | 15.9 | 17 | 18 | <1.2 |
| QHM-452 | PPH / PVDF / CFRETFE | 373 | 22.4 | 378 | 22.7 | 23 | 22 | <1.2 |
| QHM-453 | PPH / PVDF / CFRETFE | 418 | 25.1 | 462 | 27.7 | 24 | 25 | <1.2 |
| QHM-455 | PPH / PVDF / CFRETFE | 480 | 28.8 | 538 | 32.3 | 27 | 35 | <1.2 |
| QHM-552 | PPH / PVDF / CFRETFE | 457 | 27.4 | 487 | 29.2 | 23 | 22 | <1.2 |
| QHM-553 | PPH / PVDF / CFRETFE | 558 | 33.5 | 598 | 35.9 | 25 | 25 | <1.2 |
| QHM-555 | PPH / PVDF / CFRETFE | 645 | 38.7 | 707 | 42.4 | 27 | 33 | <1.2 |
| QHM-563 | PPH / PVDF / CFRETFE | 637 | 38.2 | 637 | 38.2 | 16.5 | 16.5 | <1.2 |
| QHM-565 | PPH / PVDF / CFRETFE | 818 | 49.1 | 805 | 48.3 | 24 | 24.5 | <1.2 |
| QHM-663 | PPH / PVDF / CFRETFE | 897 | 53.8 | 840 | 50.4 | 16 | 17 | <1.2 |
| QHM-665 | PPH / PVDF / CFRETFE | 1037 | 62.2 | 1055 | 63.3 | 21 | 22 | <1.2 |
QHB product sheet data. Use frequency, flow and head together for preliminary selection, then confirm liquid specific gravity and material compatibility.
| Model Number | Inlet/Outlet (mm) | 50Hz Flow (L/min) | 50Hz Flow (m3/h) | 60Hz Flow (L/min) | 60Hz Flow (m3/h) | 50Hz Head (m) | 60Hz Head (m) | Priming Head (m) | Specific Gravity | Power (HP) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QHB-40002 | 40/40 | 188 | 11.3 | 170 | 10.2 | 7 | 6 | 4 | <1.2 | 1/2 | 0.37 | 20.6 |
| QHB-40012 | 40/40 | 216 | 13 | 208 | 12.5 | 9 | 8 | 5 | <1.2 | 1 | 0.75 | 23.4 |
| QHB-40022 | 40/40 | 308 | 18.5 | 303 | 18.2 | 16 | 16 | 5 | <1.2 | 2 | 1.5 | 29 |
| QHB-40032 | 40/40 | 355 | 21.3 | 342 | 20.5 | 19 | 18 | 5 | <1.2 | 3 | 2.2 | 30.5 |
| QHB-50032 | 50/50 | 488 | 29.3 | 482 | 28.9 | 17 | 18 | 5 | <1.2 | 3 | 2.2 | 30.8 |
| QHB-50052 | 50/50 | 507 | 30.4 | 538 | 32.3 | 24 | 27 | 5 | <1.2 | 5 | 4 | 42.3 |
| QHB-75052 | 75/75 | 935 | 56.1 | 928 | 55.7 | 22 | 22 | 5 | <1.2 | 5 | 4 | 44.1 |
| QHB-75072 | 75/75 | 970 | 58.2 | 950 | 57 | 27 | 29 | 5 | <1.2 | 7.5 | 5.5 | 64.1 |
| QHB-75102 | 75/75 | 1007 | 60.4 | 1002 | 60.1 | 28 | 35 | 5 | <1.2 | 10 | 7.5 | 68.6 |
| Item / Model | QHF-10230-1 | QHF-20370-3 | QHF-30370-5 |
|---|---|---|---|
| Filtration Capacity (L/min) | 166 | 333 | 500 |
| Filtration Capacity (m³/h) | 10 | 20 | 30 |
| Filter Barrel Material | PP | PP | PP |
| Number of Disc Papers | Φ240 × 34 pcs | Φ368 × 36 pcs | Φ370 × 42 pcs |
| Applicable Temperature (°C) | 0–70 | 0–70 | 0–70 |
| Pump Power | 0.75 kW | 2.2 kW | 4 kW |
| Frame Length A (mm) | 950 | 1170 | 1170 |
| Frame Width B (mm) | 550 | 600 | 600 |
| Total Height (mm) | 1410 | 1410 | 1500 |
| Inlet / Outlet Caliber | 40 / 40 | 50 / 50 | 65 / 50 |
Scroll horizontally on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QH-1001 | QH-1002 | QH-1004 | QH-2001 | QH-2002 | QH-2004 | QH-2006-1/2 | QH-2006-1 | QH-2008-1 | QH-2008-2 | QH-2012-2 | QH-2018-3 | QH-3018-5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suitable For Tank (tons) | 0.2 | 0.4 | 0.6 | 0.4 | 0.6 | 0.8 | 1-2 | 1-2 | 1-2 | 1.5-3 | 2.5-4 | 4-6.5 | 6.5-7.5 |
| Filtration Capacity (L/min) | 26 | 28 | 63 | 30 | 58 | 80 | 203 | 233 | 258 | 336 | 418 | 523 | 733 |
| Filtration Capacity (m³/h) | 1.6 | 1.7 | 3.8 | 1.8 | 3.5 | 4.8 | 12.2 | 14 | 15.5 | 20.2 | 25.1 | 31.4 | 44 |
| Filter Barrel Material | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH |
| Cartridge (Size x Quantity) | 10" x1 | 10" x2 | 10" x4 | 20" x1 | 20" x2 | 20" x4 | 20" x6 | 20" x6 | 20" x8 | 20" x8 | 20" x12 | 20" x18 | 30" x18 |
| Filter Paper (Size x Quantity) | / | / | / | / | / | / | Φ230 x36 | Φ230 x36 | Φ230 x36 | Φ230 x36 | Φ300 x36 | Φ370 x36 | Φ370 x44 |
| Bag Type Pcs (Set) | / | / | 1 | / | / | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Pump Power | 45W | 65W | 180W | 65W | 180W | 260W | 0.37KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 4KW |
| Frame Length A (mm) | 515 | 610 | 610 | 515 | 610 | 610 | 758 | 758 | 758 | 758 | 820 | 820 | 820 |
| Frame Width B (mm) | 312 | 383 | 383 | 312 | 383 | 383 | 447 | 447 | 447 | 447 | 587 | 587 | 587 |
| Total Height (mm) | 818 | 928 | 928 | 1011 | 1110 | 1110 | 1440 | 1440 | 1445 | 1445 | 1440 | 1449 | 1705 |
| Body Weight (KG) | 11.7 | 16.5 | 21.4 | 12.7 | 21.5 | 23.1 | 49.2 | 58 | 58 | 65 | 80.7 | 87.4 | 133.5 |
| Inlet / Outlet Caliber | 20/20 | 20/20 | 25/25 | 20/20 | 25/25 | 25/25 | 40/40 | 40/40 | 40/40 | 50/40 | 50/50 | 50/50 | 65/50 |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QL-1001 | QL-1002 | QL-1004 | QL-2001 | QL-2002 | QL-2004 | QL-2006 | QL-2008 | QL-2012 | QL-2018 | QL-3018 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable Electroplating Tank Volume (ton) | 0.2 | 0.4 | 0.6 | 0.4 | 0.6 | 0.8 | 1-2 | 1-3 | 2.5-4 | 4-6.5 | 6.5-7.5 |
| Cartridge Filtration Capacity (L/min) | 26 | 28 | 63 | 30 | 58 | 80 | 203/233 | 258/336 | 418 | 523 | 733 |
| Cartridge Filtration Capacity (m³/h) | 1.6 | 1.7 | 3.8 | 1.8 | 3.5 | 4.8 | 12.2/14 | 15.5/20.2 | 25.1 | 31.4 | 44 |
| Material Of Filter Housing | PP | PP | PP | PP | PP | PP | PP | PP | PP | PP | PP |
| Filter Cartridge (Size x Quantity) | 10" x1 | 10" x2 | 10" x4 | 20" x1 | 20" x2 | 20" x4 | 20" x6 | 20" x8 | 20" x12 | 20" x18 | 30" x18 |
| Filter Paper (Size x Quantity) | / | / | / | / | / | / | Φ230 x36 | Φ230 x36 | Φ300 x36 | Φ370 x36 | Φ370 x44 |
| Filter Bag (Pieces) | / | / | 1 | / | / | 1 | 1 | 1 | 1 | 1 | 1 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Inlet / Outlet Caliber (DN) | 20/20 | 20/20 | 25/25 | 20/20 | 25/25 | 25/25 | 40/40 | 40/40 | 50/50 | 50/50 | 65/50 |
| Weight (KG) | 8.6 | 13.3 | 15.3 | 9.5 | 15.4 | 16.5 | 33.7 | 42.6 | 54.9 | 69.1 | 80.4 |
Swipe left/right on smaller screens to view all model data.
| ITEM / MODEL | QHC-1004 | QHC-2004 | QHC-2006-1 | QHC-2008-2 | QHC-2012-2 | QHC-2018-3 |
|---|---|---|---|---|---|---|
| Suitable For Tank (tons) | 0.6 | 0.8 | 1-2 | 1.5-3 | 2.5-4 | 4-6.5 |
| Filtration Capacity (L/min) | 60 | 80 | 150 | 220 | 250 | 330 |
| Filtration Capacity (m³/h) | 3.6 | 4.8 | 9 | 13.2 | 15 | 19.8 |
| Filter Barrel Material | PPH | PPH | PPH | PPH | PPH | PPH |
| Cartridge (Size x Quantity) | 10" x4 | 20" x4 | 20" x6 | 20" x8 | 20" x12 | 20" x18 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Pump Power | 250W | 0.37KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| Inlet / Outlet Caliber | 25/25 | 25/25 | 50/40 | 50/40 | 50/40 | 65/50 |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QHU-B-1-10 | QHU-B-3-20 | QHU-B-5-20 | QHU-B-7-20 | QHU-B-9-20 | QHU-B-12-20 | QHU-B-18-20 | QHU-B-24-20 |
|---|---|---|---|---|---|---|---|---|
| Filtration Capacity (L/min) | 8 | 50 | 83 | 116 | 150 | 200 | 300 | 400 |
| Filtration Capacity (m³/h) | 0.5 | 3 | 5 | 7 | 9 | 12 | 18 | 24 |
| Cartridge (Size x Quantity) | 10" x1 | 20" x3 | 20" x5 | 20" x7 | 20" x9 | 20" x12 | 20" x18 | 20" x24 |
| Design Temperature | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C |
| Inlet / Outlet Caliber | 32/32 Internal Thread | 25/25 | 50/50 | 50/50 | 65/65 | 65/65 | 80/80 | 80/80 |
| Filter Barrel Material | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L |
| Surface Treatment | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QHUM-1-49 | QHUM-1-415 | QHUM-1-620 | QHUM-1-717 | QHUM-1-732 | QHUM-2-732 | QHUM-3-732 | QHUM-4-732 | QHUM-5-732 | QHUM-6-732 |
|---|---|---|---|---|---|---|---|---|---|---|
| Filtration Capacity (L/min) | 100 | 200 | 333 | 416 | 833 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Filtration Capacity (m³/h) | 6 | 12 | 20 | 25 | 50 | 90 | 135 | 180 | 225 | 270 |
| Filter Bag (Size x Quantity) | Φ4" L9" x1 | Φ4" L15" x1 | Φ6" L20" x1 | Φ7" L17" x1 | Φ7" L32" x1 | Φ7" L32" x2 | Φ7" L32" x3 | Φ7" L32" x4 | Φ7" L32" x5 | Φ7" L32" x6 |
| Design Temperature | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C |
| Inlet / Outlet Caliber | 32/32 External Thread | 32/32 External Thread | 50/50 | 50/50 | 50/50 | 65/65 | 80/80 | 100/100 | 125/125 | 150/150 |
| Filter Barrel Material | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L |
| Surface Treatment | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing |
Swipe left/right on smaller screens to view all model data.
| Model | Rated Flow | Rated Head (m) | Inlet & Outlet (mm) | Reference S.G Range | Power | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| (L/min) | (m?/h) | HP | kW | |||||
| QBF25-20-125 | 33 | 2 | 20 | 25*20 | < 1.2 | 1.5 | 1.1 | 35 |
| QBF25-20-160 | 33 | 2 | 32 | 25*20 | < 1.2 | 1.5 | 1.1 | 40 |
| QBF25-20-200 | 33 | 2 | 50 | 25*20 | < 1.2 | 3 | 2.2 | 65 |
| QBF32-20-125 | 60 | 4 | 20 | 32*20 | < 1.2 | 1.5 | 1.1 | 40 |
| QBF32-20-160 | 60 | 4 | 32 | 32*20 | < 1.2 | 2 | 1.5 | 50 |
| QBF32-20-200 | 60 | 4 | 50 | 32*20 | < 1.2 | 4 | 3 | 70 |
| QBF40-25-125 | 105 | 6 | 20 | 40*25 | < 1.2 | 2 | 1.5 | 45 |
| QBF40-25-160 | 105 | 6 | 32 | 40*25 | < 1.2 | 3 | 2.2 | 50 |
| QBF40-25-200 | 105 | 6 | 50 | 40*25 | < 1.2 | 7.5 | 5.5 | 90 |
| QBF40-25-250 | 105 | 6 | 80 | 40*25 | < 1.2 | 15 | 11 | / |
| QBF50-32-125 | 208 | 13 | 20 | 50*32 | < 1.2 | 3 | 2.2 | 50 |
| QBF50-32-160 | 208 | 13 | 32 | 50*32 | < 1.2 | 5.5 | 4 | 90 |
| QBF50-32-200 | 208 | 13 | 50 | 50*32 | < 1.2 | 10 | 7.5 | 125 |
| QBF50-32-250 | 208 | 13 | 50 | 50*32 | < 1.2 | 15 | 11 | / |
| QBF65-50-125 | 417 | 25 | 20 | 65*50 | < 1.2 | 5.5 | 4 | 90 |
| QBF65-50-160 | 417 | 25 | 32 | 65*50 | < 1.2 | 7.5 | 5.5 | 105 |
| QBF65-40-200 | 417 | 25 | 50 | 65*40 | < 1.2 | 15 | 11 | 160 |
| QBF65-40-250 | 417 | 25 | 80 | 65*40 | < 1.2 | 25 | 18.5 | 230 |
| QBF80-65-125 | 833 | 50 | 20 | 80*65 | < 1.2 | 7.5 | 5.5 | 80 |
| QBF80-65-160 | 833 | 50 | 32 | 80*65 | < 1.2 | 15 | 11 | 135 |
| QBF80-50-200 | 833 | 50 | 50 | 80*50 | < 1.2 | 25 | 18.5 | 190 |
| QBF100-80-125 | 1667 | 100 | 20 | 100*80 | < 1.2 | 15 | 11 | 140 |
| QBF100-80-160 | 1667 | 100 | 32 | 100*80 | < 1.2 | 25 | 18.5 | 195 |
| QBF125-80-160 | 2667 | 160 | 30 | 125*80 | < 1.2 | 40 | 30 | 340 |
| QBF150-125-250 | 3333 | 200 | 20 | 150*125 | < 1.2 | 30 | 22-4P | 480 |
