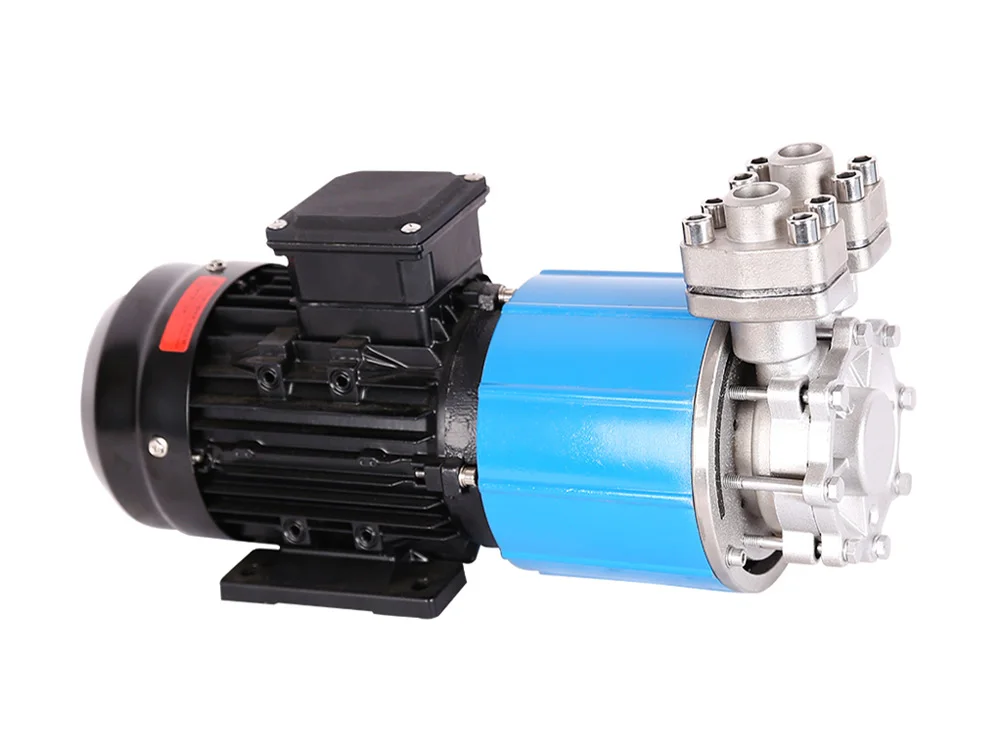

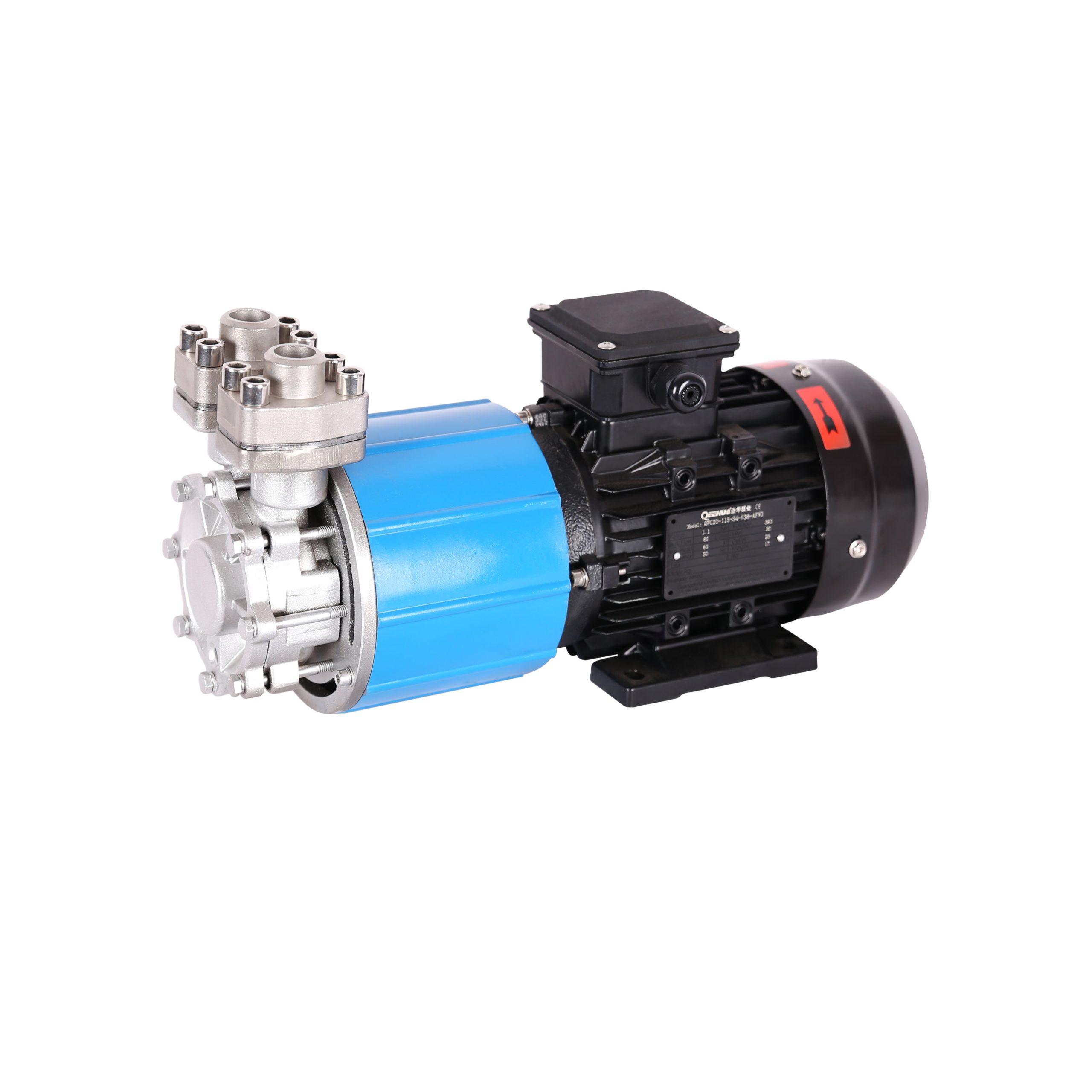

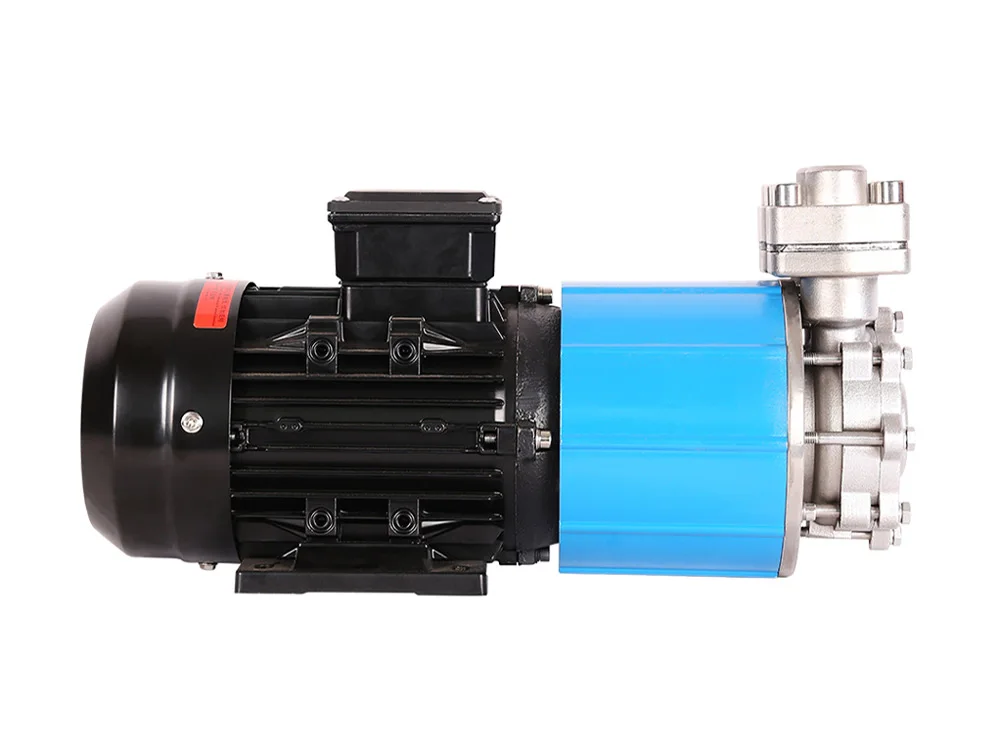

Stainless Steel Magnetic Pump QWC Series
| Material |
SUS304 / SUS316 |
|---|---|
| Flow |
15–200 L/min ( 0.9–12 m³/h ) |
| Head |
15–100 m |
| Temperature |
-196~420 ℃ |
| Power |
0.24HP-5HP |
Product Description
QWC Series is a compact stainless steel magnetic pump for clean liquid transfer and process circulation. It is suitable for applications where stainless wetted material, a small footprint, and sealless operation are more important than plastic or fluorine-lined construction.
The series is commonly used for alkaline liquids, organic solvents, oil liquids, and compatible industrial media. Its magnetic drive structure helps reduce leakage risk, making it useful for process lines that need stainless steel construction and stable high-head transfer in a compact pump body.
Parameter Table
| Model | Diameter | Motor | Max. Rated Head(m) | Max. Rated Capacity(L/min) | Pump Weight(Kg) |
Curve Code |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power(KW) | (Hp) | Voltage(V) | Hz | Speed | 50HZ | 60HZ | 50HZ | 60HZ | |||
| QWC15-018 | DN15 | DN15 | 0.18 | 0.24 | 3φ-380 | 50 | 2760 | 15/10 | 17.3/11.5 | 15/8 | 17.3/9.2 | 7.5 | 1 |
| QWC15-025 | DN15 | DN15 | 0.25 | 0.33 | 3φ-380 | 50 | 2760 | 20/12 | 23.0/13.8 | 15/11 | 17.3/12.7 | 9 | 2 |
| QWC15-037 | DN15 | DN15 | 0.37 | 0.5 | 3φ-380 | 50 | 2760 | 30/20 | 34.5/23.0 | 30/21 | 34.5/24.2 | 9.5 | 3 |
| QWC15-05 | DN15 | DN15 | 0.5 | 0.7 | 3φ-380 | 50 | 2760 | 40/30 | 46.0/34.5 | 38/25 | 43.7/28.8 | 10 | 4 |
| QWC20-075 | DN20 | DN20 | 0.75 | 1 | 3φ-380 | 50 | 2760 | 45/30 | 51.8/34.5 | 45/30 | 51.8/34.5 | 10 | 5 |
| QWC20-11 | DN20 | DN20 | 1.1 | 1.5 | 3φ-380 | 50 | 2760 | 60/40 | 69.0/46.0 | 60/40 | 69.0/46.0 | 17 | 6 |
| QWC25-17 | DN25 | DN25 | 1.7 | 2.3 | 3φ-380 | 50 | 2760 | 65/50 | 74.8/57.5 | 90/50 | 103.5/57.5 | 22 | 7 |
| QWC25-25 | DN25 | DN25 | 2.5 | 3.3 | 3φ-380 | 50 | 2760 | 90/60 | 103.5/69.0 | 95/70 | 109.3/80.5 | 26 | 8 |
| QWC25-30 | DN25 | DN25 | 3 | 4 | 3φ-380 | 50 | 2900 | 100/70 | 115.0/80.5 | 110/100 | 126.5/115.0 | 35 | 9 |
| QWC32-40 | DN32 | DN32 | 4 | 5 | 3φ-380 | 50 | 2900 | 90/70 | 103.5/80.5 | 200/120 | 230.0/138.0 | 55 | 10 |
| Item / Model | QHF-10230-1 | QHF-20370-3 | QHF-30370-5 |
|---|---|---|---|
| Filtration Capacity (L/min) | 166 | 333 | 500 |
| Filtration Capacity (m³/h) | 10 | 20 | 30 |
| Filter Barrel Material | PP | PP | PP |
| Number of Disc Papers | Φ240 × 34 pcs | Φ368 × 36 pcs | Φ370 × 42 pcs |
| Applicable Temperature (°C) | 0–70 | 0–70 | 0–70 |
| Pump Power | 0.75 kW | 2.2 kW | 4 kW |
| Frame Length A (mm) | 950 | 1170 | 1170 |
| Frame Width B (mm) | 550 | 600 | 600 |
| Total Height (mm) | 1410 | 1410 | 1500 |
| Inlet / Outlet Caliber | 40 / 40 | 50 / 50 | 65 / 50 |
Scroll horizontally on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QH-1001 | QH-1002 | QH-1004 | QH-2001 | QH-2002 | QH-2004 | QH-2006-1/2 | QH-2006-1 | QH-2008-1 | QH-2008-2 | QH-2012-2 | QH-2018-3 | QH-3018-5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suitable For Tank (tons) | 0.2 | 0.4 | 0.6 | 0.4 | 0.6 | 0.8 | 1-2 | 1-2 | 1-2 | 1.5-3 | 2.5-4 | 4-6.5 | 6.5-7.5 |
| Filtration Capacity (L/min) | 26 | 28 | 63 | 30 | 58 | 80 | 203 | 233 | 258 | 336 | 418 | 523 | 733 |
| Filtration Capacity (m³/h) | 1.6 | 1.7 | 3.8 | 1.8 | 3.5 | 4.8 | 12.2 | 14 | 15.5 | 20.2 | 25.1 | 31.4 | 44 |
| Filter Barrel Material | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH |
| Cartridge (Size x Quantity) | 10" x1 | 10" x2 | 10" x4 | 20" x1 | 20" x2 | 20" x4 | 20" x6 | 20" x6 | 20" x8 | 20" x8 | 20" x12 | 20" x18 | 30" x18 |
| Filter Paper (Size x Quantity) | / | / | / | / | / | / | Φ230 x36 | Φ230 x36 | Φ230 x36 | Φ230 x36 | Φ300 x36 | Φ370 x36 | Φ370 x44 |
| Bag Type Pcs (Set) | / | / | 1 | / | / | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Pump Power | 45W | 65W | 180W | 65W | 180W | 260W | 0.37KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 4KW |
| Frame Length A (mm) | 515 | 610 | 610 | 515 | 610 | 610 | 758 | 758 | 758 | 758 | 820 | 820 | 820 |
| Frame Width B (mm) | 312 | 383 | 383 | 312 | 383 | 383 | 447 | 447 | 447 | 447 | 587 | 587 | 587 |
| Total Height (mm) | 818 | 928 | 928 | 1011 | 1110 | 1110 | 1440 | 1440 | 1445 | 1445 | 1440 | 1449 | 1705 |
| Body Weight (KG) | 11.7 | 16.5 | 21.4 | 12.7 | 21.5 | 23.1 | 49.2 | 58 | 58 | 65 | 80.7 | 87.4 | 133.5 |
| Inlet / Outlet Caliber | 20/20 | 20/20 | 25/25 | 20/20 | 25/25 | 25/25 | 40/40 | 40/40 | 40/40 | 50/40 | 50/50 | 50/50 | 65/50 |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QL-1001 | QL-1002 | QL-1004 | QL-2001 | QL-2002 | QL-2004 | QL-2006 | QL-2008 | QL-2012 | QL-2018 | QL-3018 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable Electroplating Tank Volume (ton) | 0.2 | 0.4 | 0.6 | 0.4 | 0.6 | 0.8 | 1-2 | 1-3 | 2.5-4 | 4-6.5 | 6.5-7.5 |
| Cartridge Filtration Capacity (L/min) | 26 | 28 | 63 | 30 | 58 | 80 | 203/233 | 258/336 | 418 | 523 | 733 |
| Cartridge Filtration Capacity (m³/h) | 1.6 | 1.7 | 3.8 | 1.8 | 3.5 | 4.8 | 12.2/14 | 15.5/20.2 | 25.1 | 31.4 | 44 |
| Material Of Filter Housing | PP | PP | PP | PP | PP | PP | PP | PP | PP | PP | PP |
| Filter Cartridge (Size x Quantity) | 10" x1 | 10" x2 | 10" x4 | 20" x1 | 20" x2 | 20" x4 | 20" x6 | 20" x8 | 20" x12 | 20" x18 | 30" x18 |
| Filter Paper (Size x Quantity) | / | / | / | / | / | / | Φ230 x36 | Φ230 x36 | Φ300 x36 | Φ370 x36 | Φ370 x44 |
| Filter Bag (Pieces) | / | / | 1 | / | / | 1 | 1 | 1 | 1 | 1 | 1 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Inlet / Outlet Caliber (DN) | 20/20 | 20/20 | 25/25 | 20/20 | 25/25 | 25/25 | 40/40 | 40/40 | 50/50 | 50/50 | 65/50 |
| Weight (KG) | 8.6 | 13.3 | 15.3 | 9.5 | 15.4 | 16.5 | 33.7 | 42.6 | 54.9 | 69.1 | 80.4 |
Swipe left/right on smaller screens to view all model data.
| ITEM / MODEL | QHC-1004 | QHC-2004 | QHC-2006-1 | QHC-2008-2 | QHC-2012-2 | QHC-2018-3 |
|---|---|---|---|---|---|---|
| Suitable For Tank (tons) | 0.6 | 0.8 | 1-2 | 1.5-3 | 2.5-4 | 4-6.5 |
| Filtration Capacity (L/min) | 60 | 80 | 150 | 220 | 250 | 330 |
| Filtration Capacity (m³/h) | 3.6 | 4.8 | 9 | 13.2 | 15 | 19.8 |
| Filter Barrel Material | PPH | PPH | PPH | PPH | PPH | PPH |
| Cartridge (Size x Quantity) | 10" x4 | 20" x4 | 20" x6 | 20" x8 | 20" x12 | 20" x18 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Pump Power | 250W | 0.37KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| Inlet / Outlet Caliber | 25/25 | 25/25 | 50/40 | 50/40 | 50/40 | 65/50 |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QHU-B-1-10 | QHU-B-3-20 | QHU-B-5-20 | QHU-B-7-20 | QHU-B-9-20 | QHU-B-12-20 | QHU-B-18-20 | QHU-B-24-20 |
|---|---|---|---|---|---|---|---|---|
| Filtration Capacity (L/min) | 8 | 50 | 83 | 116 | 150 | 200 | 300 | 400 |
| Filtration Capacity (m³/h) | 0.5 | 3 | 5 | 7 | 9 | 12 | 18 | 24 |
| Cartridge (Size x Quantity) | 10" x1 | 20" x3 | 20" x5 | 20" x7 | 20" x9 | 20" x12 | 20" x18 | 20" x24 |
| Design Temperature | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C |
| Inlet / Outlet Caliber | 32/32 Internal Thread | 25/25 | 50/50 | 50/50 | 65/65 | 65/65 | 80/80 | 80/80 |
| Filter Barrel Material | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L |
| Surface Treatment | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing |
Swipe left/right on smaller screens to view all model data.
| Model | Rated Flow | Rated Head (m) | Inlet & Outlet (mm) | Reference S.G Range | Power | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| (L/min) | (m?/h) | HP | kW | |||||
| QBF25-20-125 | 33 | 2 | 20 | 25*20 | < 1.2 | 1.5 | 1.1 | 35 |
| QBF25-20-160 | 33 | 2 | 32 | 25*20 | < 1.2 | 1.5 | 1.1 | 40 |
| QBF25-20-200 | 33 | 2 | 50 | 25*20 | < 1.2 | 3 | 2.2 | 65 |
| QBF32-20-125 | 60 | 4 | 20 | 32*20 | < 1.2 | 1.5 | 1.1 | 40 |
| QBF32-20-160 | 60 | 4 | 32 | 32*20 | < 1.2 | 2 | 1.5 | 50 |
| QBF32-20-200 | 60 | 4 | 50 | 32*20 | < 1.2 | 4 | 3 | 70 |
| QBF40-25-125 | 105 | 6 | 20 | 40*25 | < 1.2 | 2 | 1.5 | 45 |
| QBF40-25-160 | 105 | 6 | 32 | 40*25 | < 1.2 | 3 | 2.2 | 50 |
| QBF40-25-200 | 105 | 6 | 50 | 40*25 | < 1.2 | 7.5 | 5.5 | 90 |
| QBF40-25-250 | 105 | 6 | 80 | 40*25 | < 1.2 | 15 | 11 | / |
| QBF50-32-125 | 208 | 13 | 20 | 50*32 | < 1.2 | 3 | 2.2 | 50 |
| QBF50-32-160 | 208 | 13 | 32 | 50*32 | < 1.2 | 5.5 | 4 | 90 |
| QBF50-32-200 | 208 | 13 | 50 | 50*32 | < 1.2 | 10 | 7.5 | 125 |
| QBF50-32-250 | 208 | 13 | 50 | 50*32 | < 1.2 | 15 | 11 | / |
| QBF65-50-125 | 417 | 25 | 20 | 65*50 | < 1.2 | 5.5 | 4 | 90 |
| QBF65-50-160 | 417 | 25 | 32 | 65*50 | < 1.2 | 7.5 | 5.5 | 105 |
| QBF65-40-200 | 417 | 25 | 50 | 65*40 | < 1.2 | 15 | 11 | 160 |
| QBF65-40-250 | 417 | 25 | 80 | 65*40 | < 1.2 | 25 | 18.5 | 230 |
| QBF80-65-125 | 833 | 50 | 20 | 80*65 | < 1.2 | 7.5 | 5.5 | 80 |
| QBF80-65-160 | 833 | 50 | 32 | 80*65 | < 1.2 | 15 | 11 | 135 |
| QBF80-50-200 | 833 | 50 | 50 | 80*50 | < 1.2 | 25 | 18.5 | 190 |
| QBF100-80-125 | 1667 | 100 | 20 | 100*80 | < 1.2 | 15 | 11 | 140 |
| QBF100-80-160 | 1667 | 100 | 32 | 100*80 | < 1.2 | 25 | 18.5 | 195 |
| QBF125-80-160 | 2667 | 160 | 30 | 125*80 | < 1.2 | 40 | 30 | 340 |
| QBF150-125-250 | 3333 | 200 | 20 | 150*125 | < 1.2 | 30 | 22-4P | 480 |
