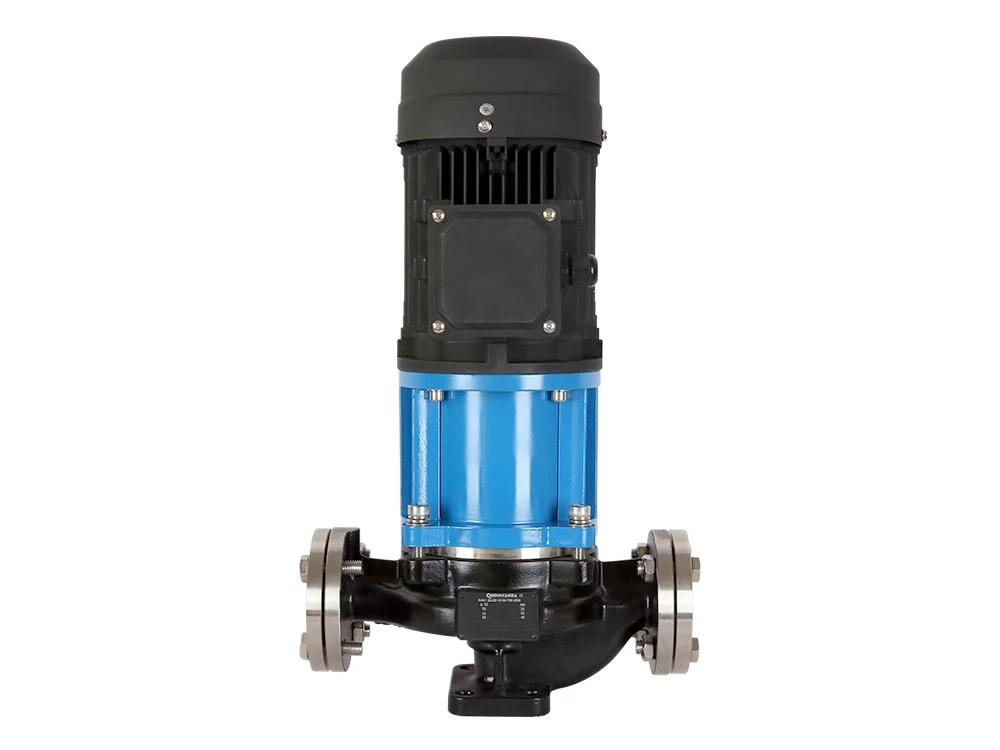

Vertical Stainless Steel Magnetic Pump QLL Series

Material	SUS304 / SUS316
Flow	200–1900 L/min ( 12–114 m³/h )
Head	16–83 m
Temperature	-196~420 ℃
Power	1HP-30HP

Product Description

QLL Series is a vertical stainless steel magnetic pump for larger industrial circulation systems. It is suitable for compatible alkaline liquids, organic solvents, oil liquids, and process media where stainless steel construction and sealless operation are required.

The vertical structure is useful when users need a stainless magnetic pump for larger systems and want to reduce leakage risk while keeping process transfer stable. It is positioned for higher-capacity stainless applications that need dependable operation across a wide temperature window.

Parameter Table

Model	Diameter		Motor					Max./ Rated Head(m)		Max./ Rated Capacity(m³/h)		Pump Weight(Kg)	Curve Code
Model	Inlet	Outlet	Power(KW)	(Hp)	Voltage(V)	Hz	Speed	50HZ	60HZ	50HZ	60HZ	Pump Weight(Kg)	Curve Code
QLL32-1	DN32	DN32	0.75	1	3φ-380	50	2900	16/14	18.4/16.1	12/4.5	13.8/5.2	40	1
QLL32-2	DN32	DN32	1.5	2	3φ-380	50	2900	25/18	28.8/20.7	18/6	20.7/6.9	43	2
QLL40-3	DN40	DN40	2.2	3	3φ-380	50	2900	28/25	32.2/28.8	24/9.5	27.6/10.9	48	3
QLL50-4	DN50	DN50	3	4	3φ-380	50	2900	28/26	32.2/29.9	30/15	34.5/17.3	60	4
QLL40-5	DN40	DN40	4	5	3φ-380	50	2900	32/28	36.8/32.2	40/22	46.0/25.3	71	5
QLL50-7.5	DN50	DN50	5.5	7.5	3φ-380	50	2900	40/35	46/40.3	80/30	92.0/34.5	90	6
QLL40-10	DN40	DN40	7.5	10	3φ-380	50	2900	42/35	48.3/40.3	90/35	103.5/40.3	104	7
QLL65-15	DN65	DN65	11	15	3φ-380	50	2900	46/38	52.9/43.7	120/42	138.0/48.3	160	8
QLL80-20	DN80	DN80	15	20	3φ-380	50	2900	52/42	59.8/48.3	140/42	161.0/48.3	175	9
QLL80-25	DN80	DN80	18.5	25	3φ-380	50	2900	85/60	97.8/69	150/50	172.5/57.5	221	10
QLL80-30	DN80	DN80	22	30	3φ-380	50	2900	80/58	92/66.7	165/70	189.8/80.5	238	11

Item / Model	QHF-10230-1	QHF-20370-3	QHF-30370-5
Filtration Capacity (L/min)	166	333	500
Filtration Capacity (m³/h)	10	20	30
Filter Barrel Material	PP	PP	PP
Number of Disc Papers	Φ240 × 34 pcs	Φ368 × 36 pcs	Φ370 × 42 pcs
Applicable Temperature (°C)	0–70	0–70	0–70
Pump Power	0.75 kW	2.2 kW	4 kW
Frame Length A (mm)	950	1170	1170
Frame Width B (mm)	550	600	600
Total Height (mm)	1410	1410	1500
Inlet / Outlet Caliber	40 / 40	50 / 50	65 / 50

Scroll horizontally on smaller screens to view all model data.

Filtration Capacity Finder

CapacityUnit

ITEM / MODEL	QH-1001	QH-1002	QH-1004	QH-2001	QH-2002	QH-2004	QH-2006-1/2	QH-2006-1	QH-2008-1	QH-2008-2	QH-2012-2	QH-2018-3	QH-3018-5
Suitable For Tank (tons)	0.2	0.4	0.6	0.4	0.6	0.8	1-2	1-2	1-2	1.5-3	2.5-4	4-6.5	6.5-7.5
Filtration Capacity (L/min)	26	28	63	30	58	80	203	233	258	336	418	523	733
Filtration Capacity (m³/h)	1.6	1.7	3.8	1.8	3.5	4.8	12.2	14	15.5	20.2	25.1	31.4	44
Filter Barrel Material	PPH	PPH	PPH	PPH	PPH	PPH	PPH	PPH	PPH	PPH	PPH	PPH	PPH
Cartridge (Size x Quantity)	10" x1	10" x2	10" x4	20" x1	20" x2	20" x4	20" x6	20" x6	20" x8	20" x8	20" x12	20" x18	30" x18
Filter Paper (Size x Quantity)	/	/	/	/	/	/	Φ230 x36	Φ230 x36	Φ230 x36	Φ230 x36	Φ300 x36	Φ370 x36	Φ370 x44
Bag Type Pcs (Set)	/	/	1	/	/	1	1	1	1	1	1	1	1
Applicable Temperature (°C)	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70
Pump Power	45W	65W	180W	65W	180W	260W	0.37KW	0.75KW	0.75KW	1.5KW	1.5KW	2.2KW	4KW
Frame Length A (mm)	515	610	610	515	610	610	758	758	758	758	820	820	820
Frame Width B (mm)	312	383	383	312	383	383	447	447	447	447	587	587	587
Total Height (mm)	818	928	928	1011	1110	1110	1440	1440	1445	1445	1440	1449	1705
Body Weight (KG)	11.7	16.5	21.4	12.7	21.5	23.1	49.2	58	58	65	80.7	87.4	133.5
Inlet / Outlet Caliber	20/20	20/20	25/25	20/20	25/25	25/25	40/40	40/40	40/40	50/40	50/50	50/50	65/50

Swipe left/right on smaller screens to view all model data.

Filtration Capacity Finder

CapacityUnit

ITEM / MODEL	QL-1001	QL-1002	QL-1004	QL-2001	QL-2002	QL-2004	QL-2006	QL-2008	QL-2012	QL-2018	QL-3018
Applicable Electroplating Tank Volume (ton)	0.2	0.4	0.6	0.4	0.6	0.8	1-2	1-3	2.5-4	4-6.5	6.5-7.5
Cartridge Filtration Capacity (L/min)	26	28	63	30	58	80	203/233	258/336	418	523	733
Cartridge Filtration Capacity (m³/h)	1.6	1.7	3.8	1.8	3.5	4.8	12.2/14	15.5/20.2	25.1	31.4	44
Material Of Filter Housing	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP
Filter Cartridge (Size x Quantity)	10" x1	10" x2	10" x4	20" x1	20" x2	20" x4	20" x6	20" x8	20" x12	20" x18	30" x18
Filter Paper (Size x Quantity)	/	/	/	/	/	/	Φ230 x36	Φ230 x36	Φ300 x36	Φ370 x36	Φ370 x44
Filter Bag (Pieces)	/	/	1	/	/	1	1	1	1	1	1
Applicable Temperature (°C)	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70	0-70
Inlet / Outlet Caliber (DN)	20/20	20/20	25/25	20/20	25/25	25/25	40/40	40/40	50/50	50/50	65/50
Weight (KG)	8.6	13.3	15.3	9.5	15.4	16.5	33.7	42.6	54.9	69.1	80.4

Swipe left/right on smaller screens to view all model data.

ITEM / MODEL	QHC-1004	QHC-2004	QHC-2006-1	QHC-2008-2	QHC-2012-2	QHC-2018-3
Suitable For Tank (tons)	0.6	0.8	1-2	1.5-3	2.5-4	4-6.5
Filtration Capacity (L/min)	60	80	150	220	250	330
Filtration Capacity (m³/h)	3.6	4.8	9	13.2	15	19.8
Filter Barrel Material	PPH	PPH	PPH	PPH	PPH	PPH
Cartridge (Size x Quantity)	10" x4	20" x4	20" x6	20" x8	20" x12	20" x18
Applicable Temperature (°C)	0-70	0-70	0-70	0-70	0-70	0-70
Pump Power	250W	0.37KW	0.75KW	1.5KW	1.5KW	2.2KW
Inlet / Outlet Caliber	25/25	25/25	50/40	50/40	50/40	65/50

Swipe left/right on smaller screens to view all model data.

Filtration Capacity Finder

CapacityUnit

ITEM / MODEL	QHU-B-1-10	QHU-B-3-20	QHU-B-5-20	QHU-B-7-20	QHU-B-9-20	QHU-B-12-20	QHU-B-18-20	QHU-B-24-20
Filtration Capacity (L/min)	8	50	83	116	150	200	300	400
Filtration Capacity (m³/h)	0.5	3	5	7	9	12	18	24
Cartridge (Size x Quantity)	10" x1	20" x3	20" x5	20" x7	20" x9	20" x12	20" x18	20" x24
Design Temperature	0-80°C	0-80°C	0-80°C	0-80°C	0-80°C	0-80°C	0-80°C	0-80°C
Inlet / Outlet Caliber	32/32 Internal Thread	25/25	50/50	50/50	65/65	65/65	80/80	80/80
Filter Barrel Material	SUS304 / SUS316L	SUS304 / SUS316L	SUS304 / SUS316L	SUS304 / SUS316L	SUS304 / SUS316L	SUS304 / SUS316L	SUS304 / SUS316L	SUS304 / SUS316L
Surface Treatment	Electrochemical Polishing	Electrochemical Polishing	Electrochemical Polishing	Electrochemical Polishing	Electrochemical Polishing	Electrochemical Polishing	Electrochemical Polishing	Electrochemical Polishing

Swipe left/right on smaller screens to view all model data.

Model	Rated Flow		Rated Head (m)	Inlet & Outlet (mm)	Reference S.G Range	Power		Weight (kg)
Model	(L/min)	(m?/h)	Rated Head (m)	Inlet & Outlet (mm)	Reference S.G Range	HP	kW	Weight (kg)
QBF25-20-125	33	2	20	25*20	< 1.2	1.5	1.1	35
QBF25-20-160	33	2	32	25*20	< 1.2	1.5	1.1	40
QBF25-20-200	33	2	50	25*20	< 1.2	3	2.2	65
QBF32-20-125	60	4	20	32*20	< 1.2	1.5	1.1	40
QBF32-20-160	60	4	32	32*20	< 1.2	2	1.5	50
QBF32-20-200	60	4	50	32*20	< 1.2	4	3	70
QBF40-25-125	105	6	20	40*25	< 1.2	2	1.5	45
QBF40-25-160	105	6	32	40*25	< 1.2	3	2.2	50
QBF40-25-200	105	6	50	40*25	< 1.2	7.5	5.5	90
QBF40-25-250	105	6	80	40*25	< 1.2	15	11	/
QBF50-32-125	208	13	20	50*32	< 1.2	3	2.2	50
QBF50-32-160	208	13	32	50*32	< 1.2	5.5	4	90
QBF50-32-200	208	13	50	50*32	< 1.2	10	7.5	125
QBF50-32-250	208	13	50	50*32	< 1.2	15	11	/
QBF65-50-125	417	25	20	65*50	< 1.2	5.5	4	90
QBF65-50-160	417	25	32	65*50	< 1.2	7.5	5.5	105
QBF65-40-200	417	25	50	65*40	< 1.2	15	11	160
QBF65-40-250	417	25	80	65*40	< 1.2	25	18.5	230
QBF80-65-125	833	50	20	80*65	< 1.2	7.5	5.5	80
QBF80-65-160	833	50	32	80*65	< 1.2	15	11	135
QBF80-50-200	833	50	50	80*50	< 1.2	25	18.5	190
QBF100-80-125	1667	100	20	100*80	< 1.2	15	11	140
QBF100-80-160	1667	100	32	100*80	< 1.2	25	18.5	195
QBF125-80-160	2667	160	30	125*80	< 1.2	40	30	340
QBF150-125-250	3333	200	20	150*125	< 1.2	30	22-4P	480
