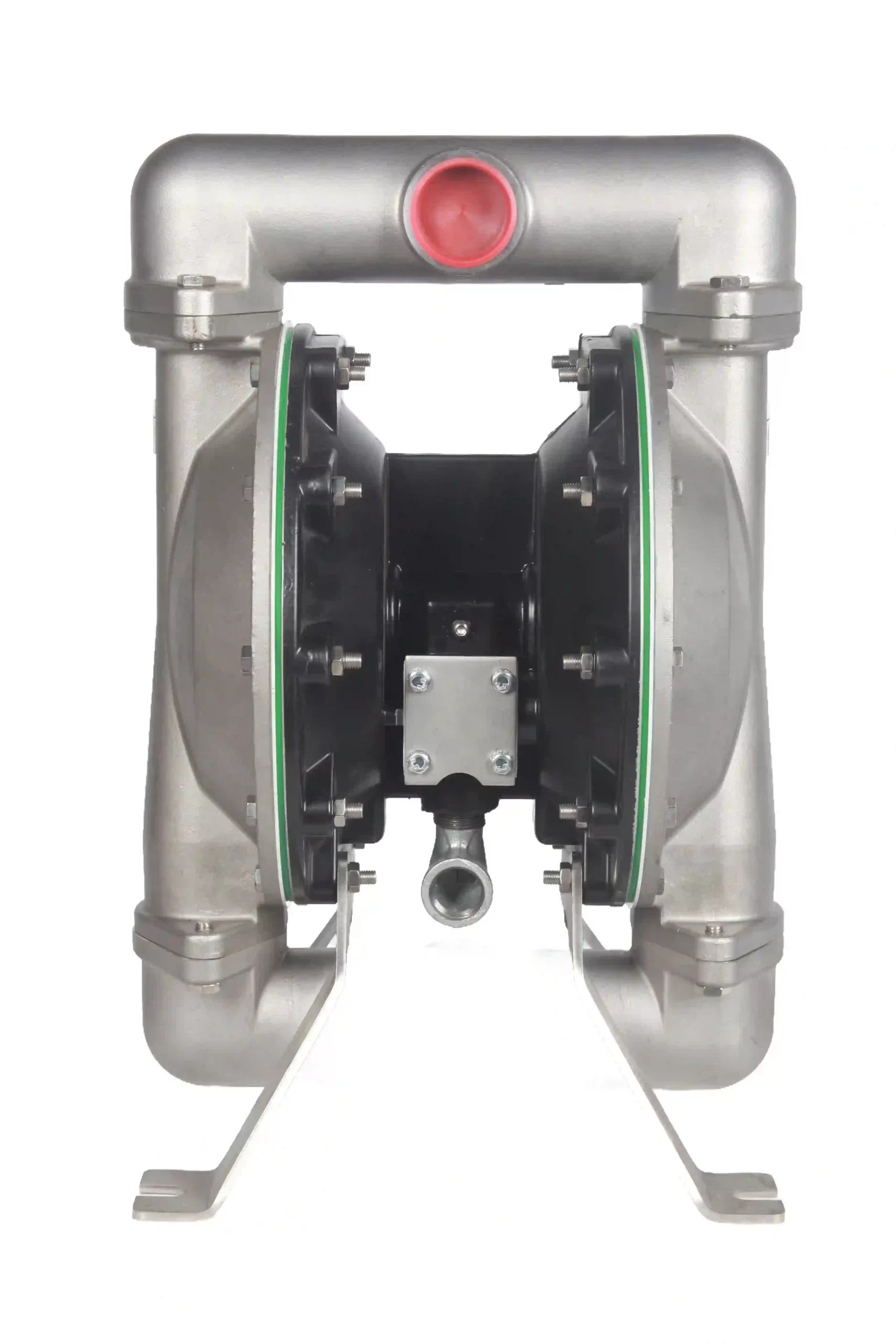

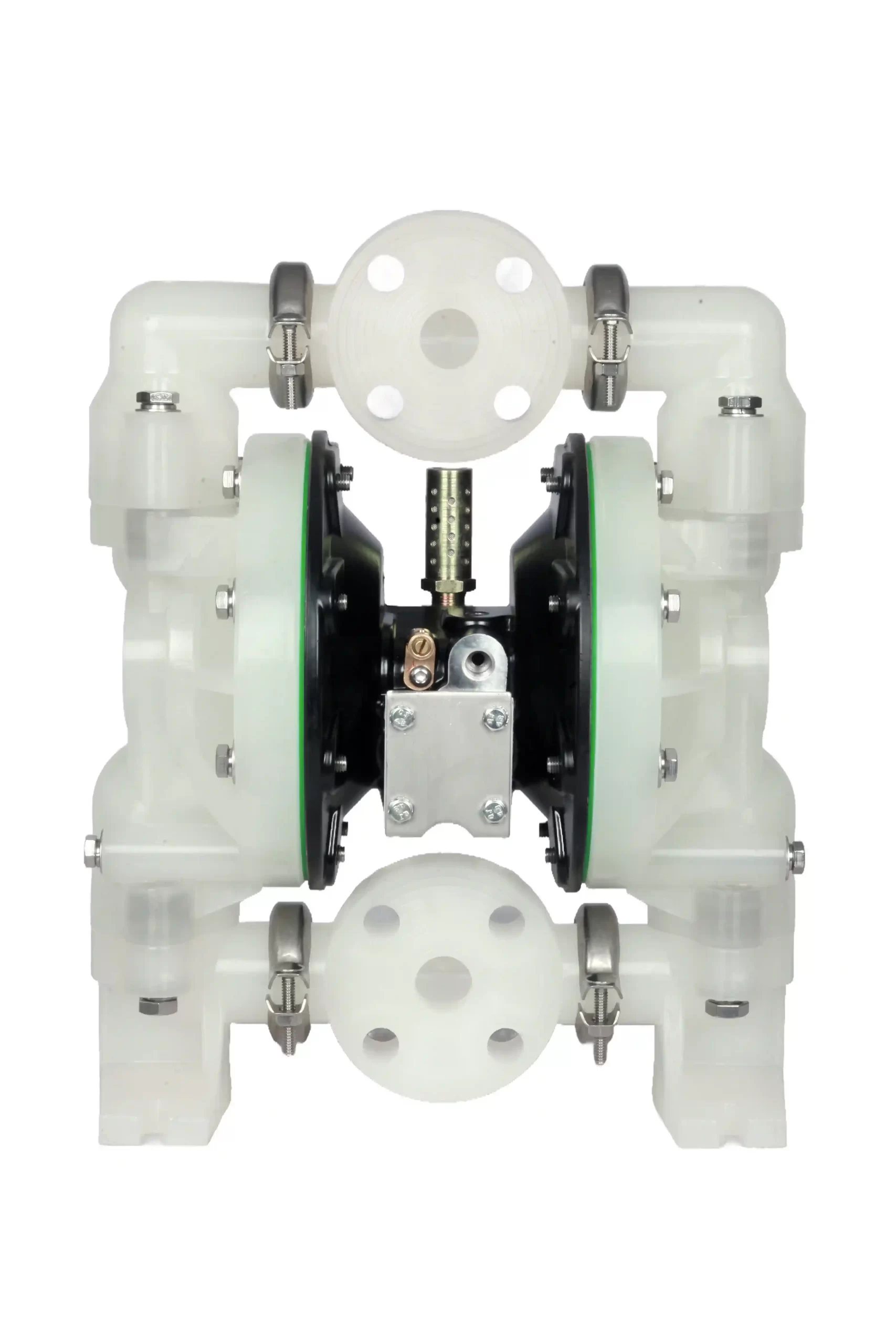

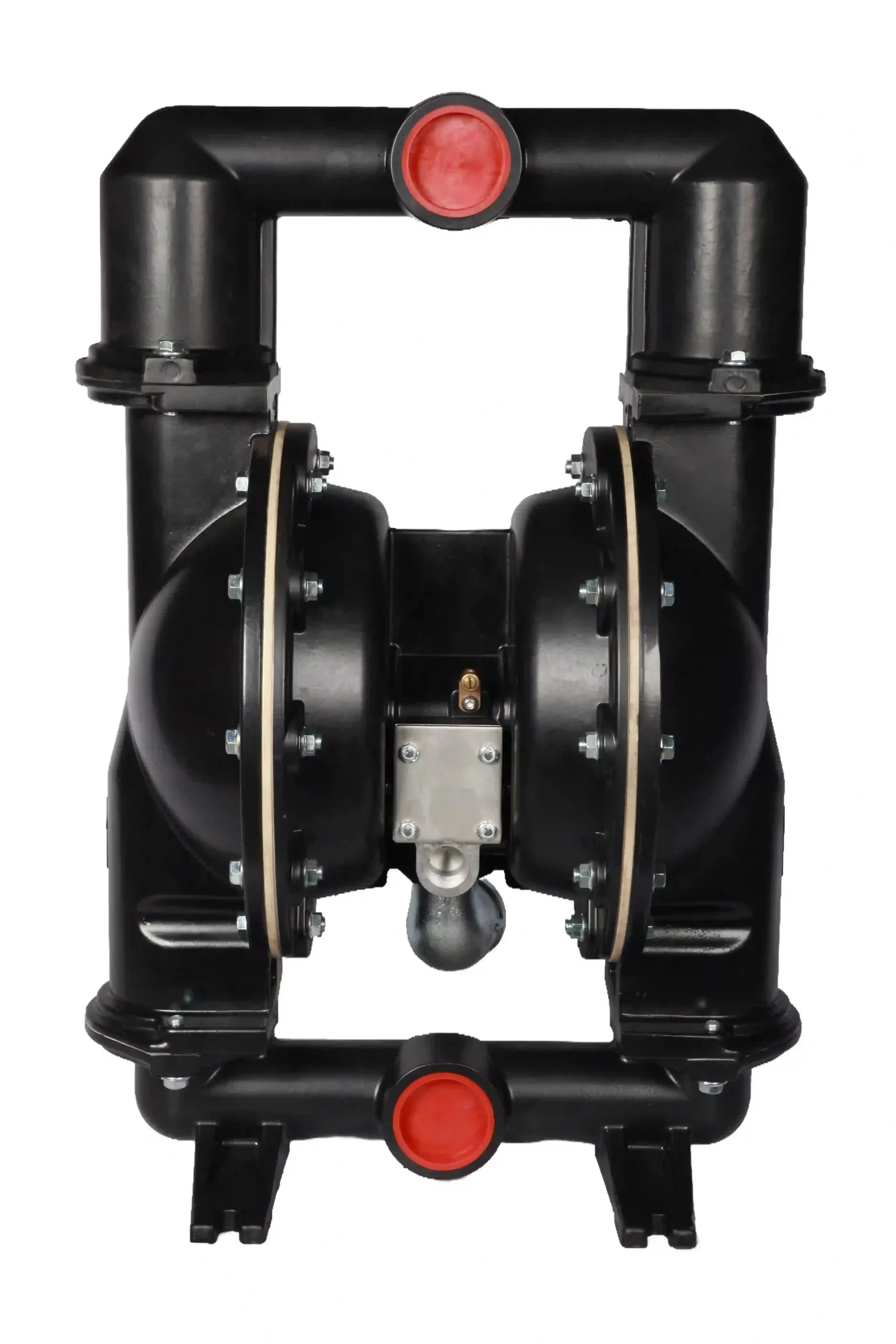

Pneumatic Diaphragm Pumps QA Series
| Flow |
897 L/min (53.8 m³/h) |
|---|---|
| Head |
83 m |
| Material |
Polypropylene / Aluminum alloy / Cast iron / Stainless steel |
Product Description
The QA series air-operated diaphragm pumps are engineered for safe and reliable transfer of corrosive, viscous, and particle-containing liquids. Powered by compressed air, they offer flexible operation without electric motor exposure, making them suitable for hazardous and demanding working environments.
Their self-priming ability, dry-run capability, and solid-handling performance make the QA series an efficient choice for chemical transfer, drum unloading, wastewater handling, and industrial circulation systems. With corrosion-resistant construction and easy maintenance, the QA series delivers practical performance and dependable service life.
Parameter Table
| Model | Pump Material | Inlet/Outlet (Inch) |
Ball Seat Material |
Ball Material |
Diaphragm Material |
Max Flow | Max Head (m) |
Connection Type |
Self-Priming (m) | Max Particle (mm) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/Min | m³/h | Dry | Wet | |||||||||
| QA05J-3EB | PP | 15/15 | PP | Santoprene | Santoprene | 49.2 | 3.0 | 69 | Screw | 3 | 6 | 2.4 |
| QA05J-344 | PP | 15/15 | PP | PTFE | PTFE | 49.2 | 3.0 | 69 | Screw | 3 | 6 | 2.4 |
| QA1A3-3EB | PP | 25/25 | PP | Santoprene | Santoprene | 177.9 | 10.7 | 83 | Flange | 3 | 6 | 3.2 |
| QA1K3-344 | Pure PVDF | 25/25 | PVDF | PTFE | PTFE | 177.9 | 10.7 | 83 | Flange | 3 | 6 | 3.2 |
| QA1T3-3EB | PP | 40/40 | PP | Santoprene | Santoprene | 378.5 | 22.7 | 83 | Flange | 2 | 6 | 6.4 |
| QA1T3-K44 | Pure PVDF | 40/40 | PVDF | PTFE | PTFE | 378.5 | 22.7 | 83 | Flange | 2 | 6 | 6.4 |
| QA120-3EB | Aluminum Alloy | 25/25 | PP | Santoprene | Santoprene | 133.0 | 8.0 | 83 | Screw | 3 | 8 | 3.2 |
| QA120-344 | Aluminum Alloy | 25/25 | PP | PTFE | PTFE | 133.0 | 8.0 | 83 | Screw | 3 | 8 | 3.2 |
| QA122-3EB | Cast Iron | 25/25 | PP | Santoprene | Santoprene | 133.0 | 8.0 | 83 | Screw | 3 | 8 | 3.2 |
| QA12B-3EB | Stainless Steel | 25/25 | PP | Santoprene | Santoprene | 133.0 | 8.0 | 83 | Screw | 3 | 8 | 3.2 |
| QA12B-244 | Stainless Steel | 25/25 | 304/316 | PTFE | PTFE | 133.0 | 8.0 | 83 | Screw | 3 | 8 | 3.2 |
| QA170-3EB | Aluminum Alloy | 40/40 | PP | Santoprene | Santoprene | 340.7 | 20.4 | 83 | Screw | 5 | 8 | 6.4 |
| QA170-244 | Aluminum Alloy | 40/40 | 304/316 | PTFE | PTFE | 340.7 | 20.4 | 83 | Screw | 5 | 8 | 6.4 |
| QA172-3EB | Cast Iron | 40/40 | PP | Santoprene | Santoprene | 340.7 | 20.4 | 83 | Screw | 5 | 8 | 6.4 |
| QA17B-3EB | Stainless Steel | 40/40 | PP | Santoprene | Santoprene | 340.7 | 20.4 | 83 | Screw | 5 | 8 | 6.4 |
| QA17B-244 | Stainless Steel | 40/40 | 304/316 | PTFE | PTFE | 340.7 | 20.4 | 83 | Screw | 5 | 8 | 6.4 |
| QA270-EEB | Aluminum Alloy | 50/50 | Santoprene | Santoprene | Santoprene | 651.0 | 39.1 | 83 | Screw | 5.5 | 8 | 6.4 |
| QA270-244 | Aluminum Alloy | 50/50 | 304/316 | PTFE | PTFE | 651.0 | 39.1 | 83 | Screw | 5.5 | 8 | 6.4 |
| QA272-EEB | Cast Iron | 50/50 | Santoprene | Santoprene | Santoprene | 651.0 | 39.1 | 83 | Screw | 5.5 | 8 | 6.4 |
| QA272-244 | Cast Iron | 50/50 | 304/316 | PTFE | PTFE | 651.0 | 39.1 | 83 | Screw | 5.5 | 8 | 6.4 |
| QA27B-EEB | Stainless Steel | 50/50 | Santoprene | Santoprene | Santoprene | 651.0 | 39.1 | 83 | Screw | 5.5 | 8 | 6.4 |
| QA27B-244 | Stainless Steel | 50/50 | 304/316 | PTFE | PTFE | 651.0 | 39.1 | 83 | Screw | 5.5 | 8 | 6.4 |
| QA320-EEB | Aluminum Alloy | 80/80 | Santoprene | Santoprene | Santoprene | 897.0 | 53.8 | 83 | Screw | 3 | 8 | 10.03 |
| QA320-244 | Aluminum Alloy | 80/80 | 304/316 | PTFE | PTFE | 897.0 | 53.8 | 83 | Screw | 3 | 8 | 10.03 |
| QA322-EEB | Cast Iron | 80/80 | Santoprene | Santoprene | Santoprene | 897.0 | 53.8 | 83 | Screw | 3 | 8 | 10.03 |
| QA32B-EEB | Stainless Steel | 80/80 | Santoprene | Santoprene | Santoprene | 897.0 | 53.8 | 83 | Screw | 3 | 8 | 10.03 |
| QA32B-244 | Stainless Steel | 80/80 | 304/316 | PTFE | PTFE | 897.0 | 53.8 | 83 | Screw | 3 | 8 | 10.03 |
| Item / Model | QHF-10230-1 | QHF-20370-3 | QHF-30370-5 |
|---|---|---|---|
| Filtration Capacity (L/min) | 166 | 333 | 500 |
| Filtration Capacity (m³/h) | 10 | 20 | 30 |
| Filter Barrel Material | PP | PP | PP |
| Number of Disc Papers | Φ240 × 34 pcs | Φ368 × 36 pcs | Φ370 × 42 pcs |
| Applicable Temperature (°C) | 0–70 | 0–70 | 0–70 |
| Pump Power | 0.75 kW | 2.2 kW | 4 kW |
| Frame Length A (mm) | 950 | 1170 | 1170 |
| Frame Width B (mm) | 550 | 600 | 600 |
| Total Height (mm) | 1410 | 1410 | 1500 |
| Inlet / Outlet Caliber | 40 / 40 | 50 / 50 | 65 / 50 |
Scroll horizontally on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QH-1001 | QH-1002 | QH-1004 | QH-2001 | QH-2002 | QH-2004 | QH-2006-1/2 | QH-2006-1 | QH-2008-1 | QH-2008-2 | QH-2012-2 | QH-2018-3 | QH-3018-5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suitable For Tank (tons) | 0.2 | 0.4 | 0.6 | 0.4 | 0.6 | 0.8 | 1-2 | 1-2 | 1-2 | 1.5-3 | 2.5-4 | 4-6.5 | 6.5-7.5 |
| Filtration Capacity (L/min) | 26 | 28 | 63 | 30 | 58 | 80 | 203 | 233 | 258 | 336 | 418 | 523 | 733 |
| Filtration Capacity (m³/h) | 1.6 | 1.7 | 3.8 | 1.8 | 3.5 | 4.8 | 12.2 | 14 | 15.5 | 20.2 | 25.1 | 31.4 | 44 |
| Filter Barrel Material | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH | PPH |
| Cartridge (Size x Quantity) | 10" x1 | 10" x2 | 10" x4 | 20" x1 | 20" x2 | 20" x4 | 20" x6 | 20" x6 | 20" x8 | 20" x8 | 20" x12 | 20" x18 | 30" x18 |
| Filter Paper (Size x Quantity) | / | / | / | / | / | / | Φ230 x36 | Φ230 x36 | Φ230 x36 | Φ230 x36 | Φ300 x36 | Φ370 x36 | Φ370 x44 |
| Bag Type Pcs (Set) | / | / | 1 | / | / | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Pump Power | 45W | 65W | 180W | 65W | 180W | 260W | 0.37KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 4KW |
| Frame Length A (mm) | 515 | 610 | 610 | 515 | 610 | 610 | 758 | 758 | 758 | 758 | 820 | 820 | 820 |
| Frame Width B (mm) | 312 | 383 | 383 | 312 | 383 | 383 | 447 | 447 | 447 | 447 | 587 | 587 | 587 |
| Total Height (mm) | 818 | 928 | 928 | 1011 | 1110 | 1110 | 1440 | 1440 | 1445 | 1445 | 1440 | 1449 | 1705 |
| Body Weight (KG) | 11.7 | 16.5 | 21.4 | 12.7 | 21.5 | 23.1 | 49.2 | 58 | 58 | 65 | 80.7 | 87.4 | 133.5 |
| Inlet / Outlet Caliber | 20/20 | 20/20 | 25/25 | 20/20 | 25/25 | 25/25 | 40/40 | 40/40 | 40/40 | 50/40 | 50/50 | 50/50 | 65/50 |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QL-1001 | QL-1002 | QL-1004 | QL-2001 | QL-2002 | QL-2004 | QL-2006 | QL-2008 | QL-2012 | QL-2018 | QL-3018 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable Electroplating Tank Volume (ton) | 0.2 | 0.4 | 0.6 | 0.4 | 0.6 | 0.8 | 1-2 | 1-3 | 2.5-4 | 4-6.5 | 6.5-7.5 |
| Cartridge Filtration Capacity (L/min) | 26 | 28 | 63 | 30 | 58 | 80 | 203/233 | 258/336 | 418 | 523 | 733 |
| Cartridge Filtration Capacity (m³/h) | 1.6 | 1.7 | 3.8 | 1.8 | 3.5 | 4.8 | 12.2/14 | 15.5/20.2 | 25.1 | 31.4 | 44 |
| Material Of Filter Housing | PP | PP | PP | PP | PP | PP | PP | PP | PP | PP | PP |
| Filter Cartridge (Size x Quantity) | 10" x1 | 10" x2 | 10" x4 | 20" x1 | 20" x2 | 20" x4 | 20" x6 | 20" x8 | 20" x12 | 20" x18 | 30" x18 |
| Filter Paper (Size x Quantity) | / | / | / | / | / | / | Φ230 x36 | Φ230 x36 | Φ300 x36 | Φ370 x36 | Φ370 x44 |
| Filter Bag (Pieces) | / | / | 1 | / | / | 1 | 1 | 1 | 1 | 1 | 1 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Inlet / Outlet Caliber (DN) | 20/20 | 20/20 | 25/25 | 20/20 | 25/25 | 25/25 | 40/40 | 40/40 | 50/50 | 50/50 | 65/50 |
| Weight (KG) | 8.6 | 13.3 | 15.3 | 9.5 | 15.4 | 16.5 | 33.7 | 42.6 | 54.9 | 69.1 | 80.4 |
Swipe left/right on smaller screens to view all model data.
| ITEM / MODEL | QHC-1004 | QHC-2004 | QHC-2006-1 | QHC-2008-2 | QHC-2012-2 | QHC-2018-3 |
|---|---|---|---|---|---|---|
| Suitable For Tank (tons) | 0.6 | 0.8 | 1-2 | 1.5-3 | 2.5-4 | 4-6.5 |
| Filtration Capacity (L/min) | 60 | 80 | 150 | 220 | 250 | 330 |
| Filtration Capacity (m³/h) | 3.6 | 4.8 | 9 | 13.2 | 15 | 19.8 |
| Filter Barrel Material | PPH | PPH | PPH | PPH | PPH | PPH |
| Cartridge (Size x Quantity) | 10" x4 | 20" x4 | 20" x6 | 20" x8 | 20" x12 | 20" x18 |
| Applicable Temperature (°C) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Pump Power | 250W | 0.37KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| Inlet / Outlet Caliber | 25/25 | 25/25 | 50/40 | 50/40 | 50/40 | 65/50 |
Swipe left/right on smaller screens to view all model data.
Filtration Capacity Finder
| ITEM / MODEL | QHU-B-1-10 | QHU-B-3-20 | QHU-B-5-20 | QHU-B-7-20 | QHU-B-9-20 | QHU-B-12-20 | QHU-B-18-20 | QHU-B-24-20 |
|---|---|---|---|---|---|---|---|---|
| Filtration Capacity (L/min) | 8 | 50 | 83 | 116 | 150 | 200 | 300 | 400 |
| Filtration Capacity (m³/h) | 0.5 | 3 | 5 | 7 | 9 | 12 | 18 | 24 |
| Cartridge (Size x Quantity) | 10" x1 | 20" x3 | 20" x5 | 20" x7 | 20" x9 | 20" x12 | 20" x18 | 20" x24 |
| Design Temperature | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C |
| Inlet / Outlet Caliber | 32/32 Internal Thread | 25/25 | 50/50 | 50/50 | 65/65 | 65/65 | 80/80 | 80/80 |
| Filter Barrel Material | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L | SUS304 / SUS316L |
| Surface Treatment | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing | Electrochemical Polishing |
Swipe left/right on smaller screens to view all model data.
| Model | Rated Flow | Rated Head (m) | Inlet & Outlet (mm) | Reference S.G Range | Power | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| (L/min) | (m?/h) | HP | kW | |||||
| QBF25-20-125 | 33 | 2 | 20 | 25*20 | < 1.2 | 1.5 | 1.1 | 35 |
| QBF25-20-160 | 33 | 2 | 32 | 25*20 | < 1.2 | 1.5 | 1.1 | 40 |
| QBF25-20-200 | 33 | 2 | 50 | 25*20 | < 1.2 | 3 | 2.2 | 65 |
| QBF32-20-125 | 60 | 4 | 20 | 32*20 | < 1.2 | 1.5 | 1.1 | 40 |
| QBF32-20-160 | 60 | 4 | 32 | 32*20 | < 1.2 | 2 | 1.5 | 50 |
| QBF32-20-200 | 60 | 4 | 50 | 32*20 | < 1.2 | 4 | 3 | 70 |
| QBF40-25-125 | 105 | 6 | 20 | 40*25 | < 1.2 | 2 | 1.5 | 45 |
| QBF40-25-160 | 105 | 6 | 32 | 40*25 | < 1.2 | 3 | 2.2 | 50 |
| QBF40-25-200 | 105 | 6 | 50 | 40*25 | < 1.2 | 7.5 | 5.5 | 90 |
| QBF40-25-250 | 105 | 6 | 80 | 40*25 | < 1.2 | 15 | 11 | / |
| QBF50-32-125 | 208 | 13 | 20 | 50*32 | < 1.2 | 3 | 2.2 | 50 |
| QBF50-32-160 | 208 | 13 | 32 | 50*32 | < 1.2 | 5.5 | 4 | 90 |
| QBF50-32-200 | 208 | 13 | 50 | 50*32 | < 1.2 | 10 | 7.5 | 125 |
| QBF50-32-250 | 208 | 13 | 50 | 50*32 | < 1.2 | 15 | 11 | / |
| QBF65-50-125 | 417 | 25 | 20 | 65*50 | < 1.2 | 5.5 | 4 | 90 |
| QBF65-50-160 | 417 | 25 | 32 | 65*50 | < 1.2 | 7.5 | 5.5 | 105 |
| QBF65-40-200 | 417 | 25 | 50 | 65*40 | < 1.2 | 15 | 11 | 160 |
| QBF65-40-250 | 417 | 25 | 80 | 65*40 | < 1.2 | 25 | 18.5 | 230 |
| QBF80-65-125 | 833 | 50 | 20 | 80*65 | < 1.2 | 7.5 | 5.5 | 80 |
| QBF80-65-160 | 833 | 50 | 32 | 80*65 | < 1.2 | 15 | 11 | 135 |
| QBF80-50-200 | 833 | 50 | 50 | 80*50 | < 1.2 | 25 | 18.5 | 190 |
| QBF100-80-125 | 1667 | 100 | 20 | 100*80 | < 1.2 | 15 | 11 | 140 |
| QBF100-80-160 | 1667 | 100 | 32 | 100*80 | < 1.2 | 25 | 18.5 | 195 |
| QBF125-80-160 | 2667 | 160 | 30 | 125*80 | < 1.2 | 40 | 30 | 340 |
| QBF150-125-250 | 3333 | 200 | 20 | 150*125 | < 1.2 | 30 | 22-4P | 480 |
