QHS 1/2HP-20HP

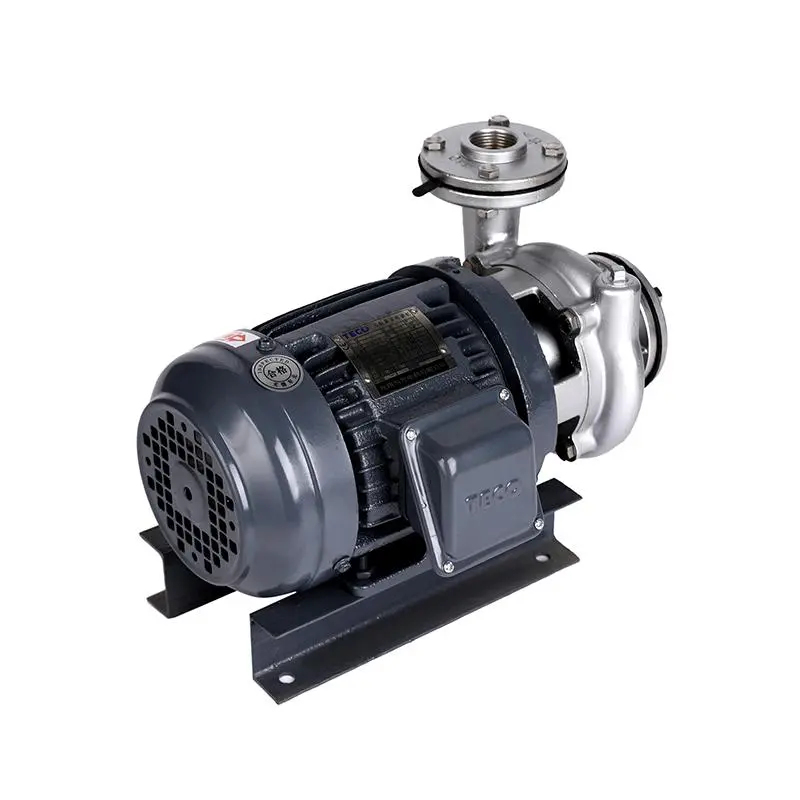

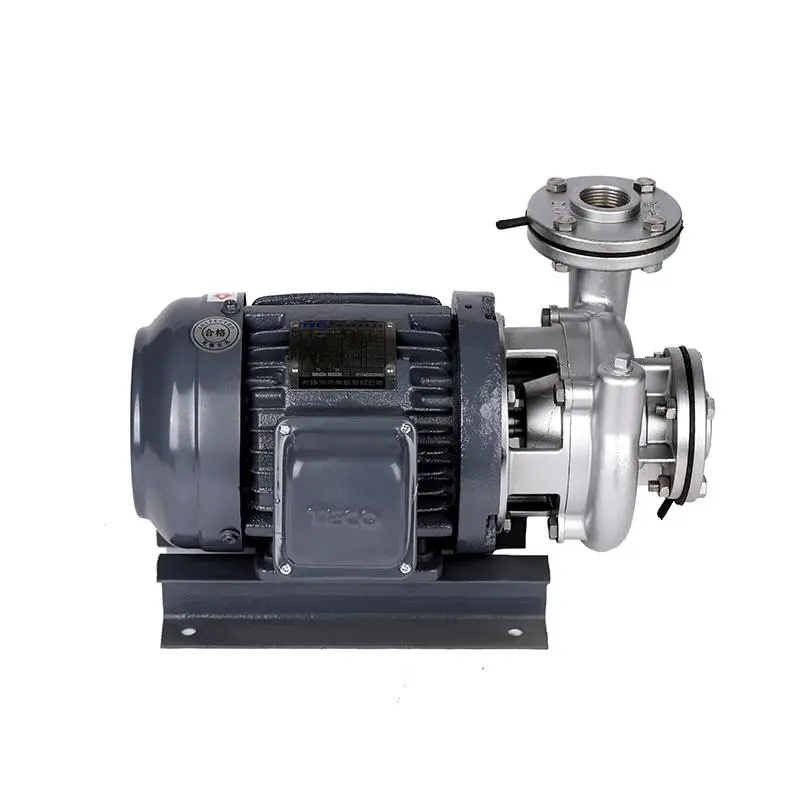

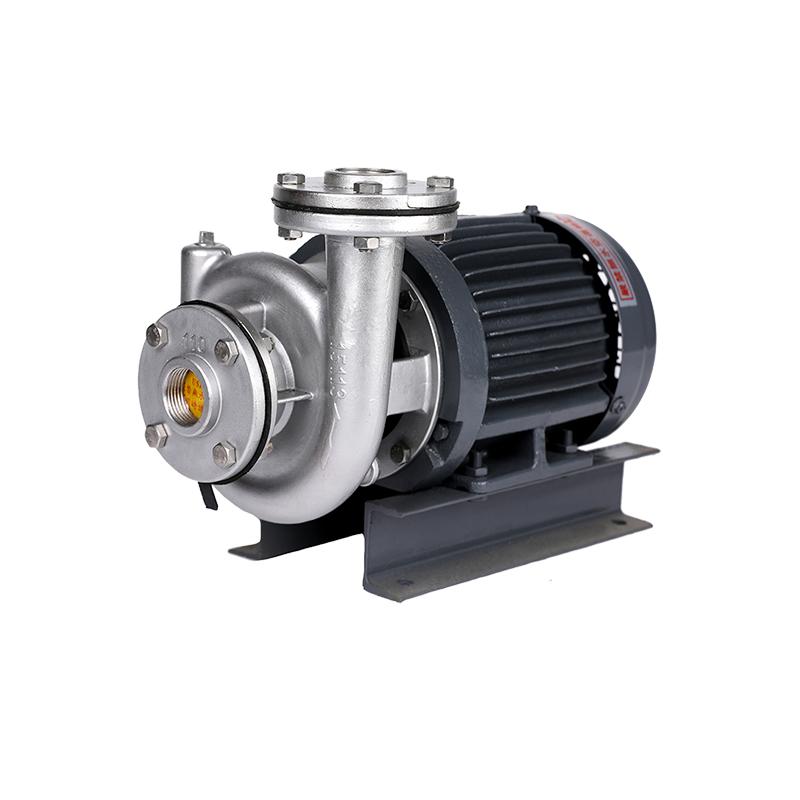

Stainless Steel Centrifugal Pump
Suitable for multiple industries including PCB/FPC, continuous electroplating, lithium batteries, solar energy, semiconductors, wastewater and waste gas treatment, coating/environmental protection, and chemical pharmaceuticals.
Main material: SUS304, SUS316
Max. flow
– 3100 L/min
Max. head
– 35 m
Liquid
– Supports highly corrosive liquids
Temp
– 0-80℃
Please refer to the table below for detailed parameters.
Video Demonstration
Parameter Table
| NO. | MODEL | POWER | IN & OUTLET SIZE | ROTATIONAL SPEED | MAX.HEAD (50HZ) | MAX.FLOW (50HZ) | ||
|---|---|---|---|---|---|---|---|---|
| HP | KW | M | L/MIN | M³/H | ||||
| 1 | QHS-25-0.5 | 0.5 | 0.37 | DN25 | 2850 | 14 | 150 | 9 |
| 2 | QHS-25-1 | 1 | 0.75 | DN25 | 2850 | 14 | 200 | 12 |
| 3 | QHS-40-1 | 1 | 0.75 | DN40 | 2850 | 14 | 250 | 15 |
| 4 | QHS-40-2 | 2 | 1.5 | DN40 | 2850 | 17.5 | 383 | 23 |
| 5 | QHS-50-2 | 2 | 1.5 | DN50 | 2850 | 17.5 | 500 | 30 |
| 6 | QHS-50-3 | 3 | 2.2 | DN50 | 2850 | 20 | 500 | 30 |
| 7 | QHS-65-3 | 3 | 2.2 | DN65 | 2850 | 20 | 600 | 36 |
| 8 | QHS-50-5 | 5 | 3.7 | DN50 | 2850 | 23 | 633 | 38 |
| 9 | QHS-65-5 | 5 | 3.7 | DN65 | 2850 | 23 | 700 | 42 |
| 10 | QHS-80-7.5 | 7.5 | 5.5 | DN80 | 2850 | 27 | 1033 | 62 |
| 11 | QHS-100-7.5 | 7.5 | 5.5 | DN100 | 2850 | 27 | 1533 | 92 |
| 12 | QHS-80-10 | 10 | 7.5 | DN80 | 2850 | 31 | 1033 | 62 |
| 13 | QHS-100-10 | 10 | 7.5 | DN100 | 2850 | 27 | 1800 | 108 |
| 14 | QHS-100-15 | 15 | 11 | DN100 | 2850 | 31 | 1866 | 112 |
| 15 | QHS-125-15 | 15 | 11 | DN125 | 2850 | 27 | 2700 | 162 |
| 16 | QHS-100-20 | 20 | 15 | DN100 | 2850 | 35 | 2133 | 128 |
| 17 | QHS-125-20 | 20 | 15 | DN125 | 2850 | 27 | 3050 | 183 |
