Air Operated Diaphragm Pump
QG 1/1.5/2/3 inches
Application
Suitable for multiple industries including PCB/FPC, continuous electroplating, lithium batteries, solar energy, semiconductors, wastewater and waste gas treatment, coating/environmental protection, and chemical pharmaceuticals.

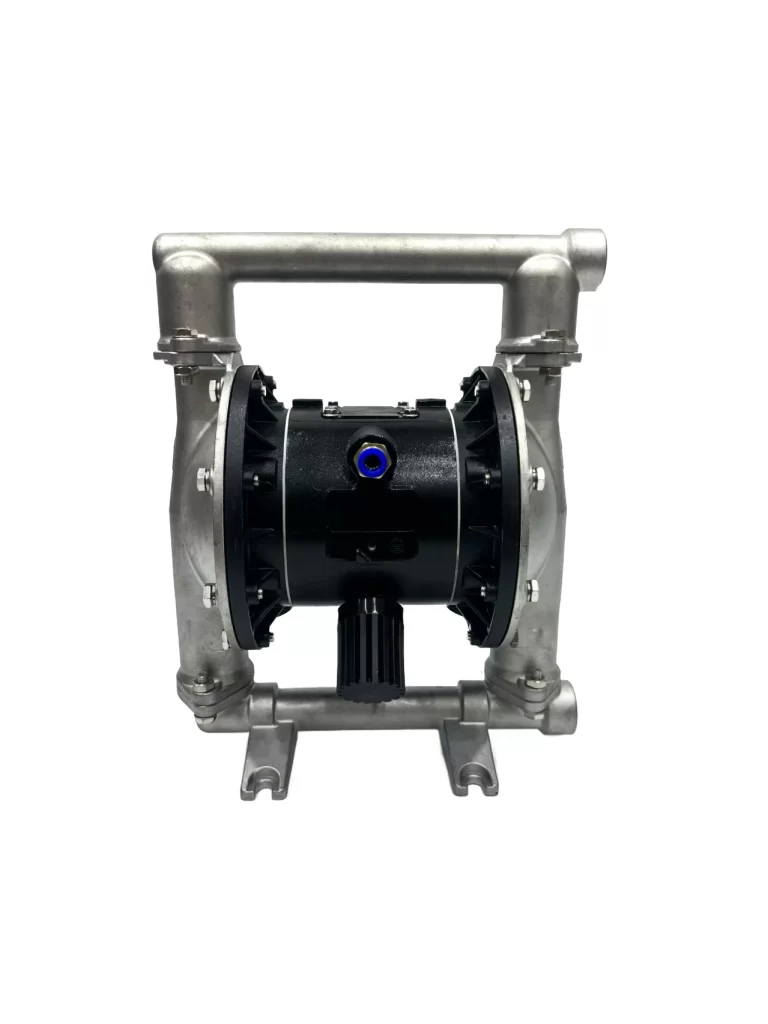

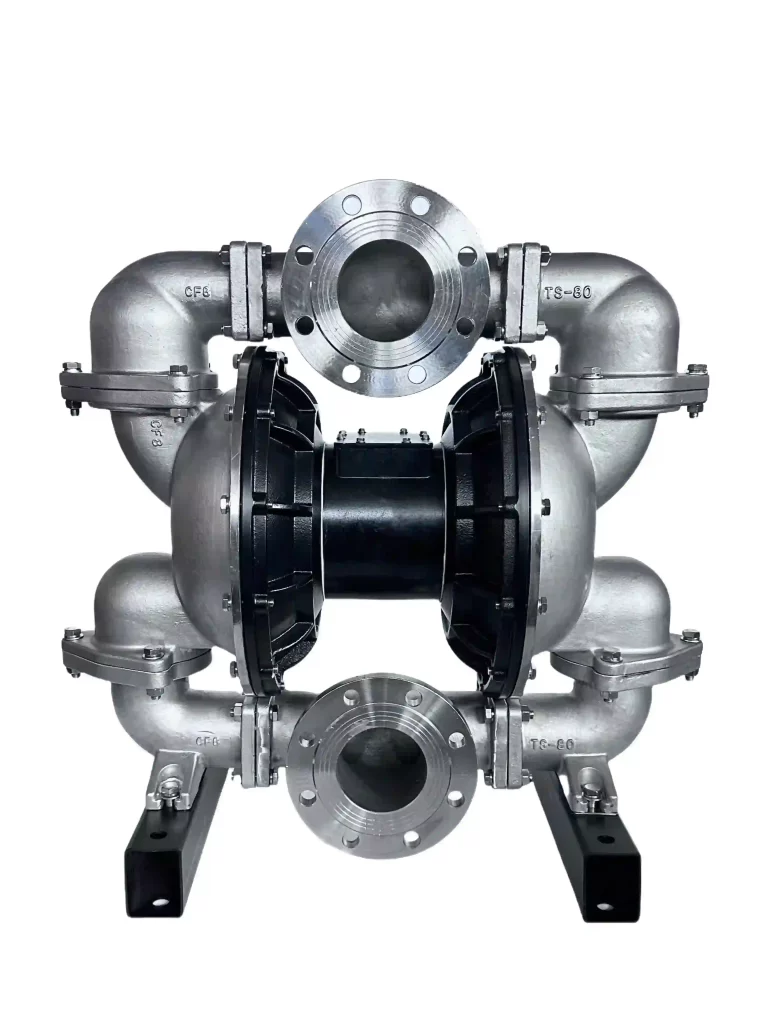

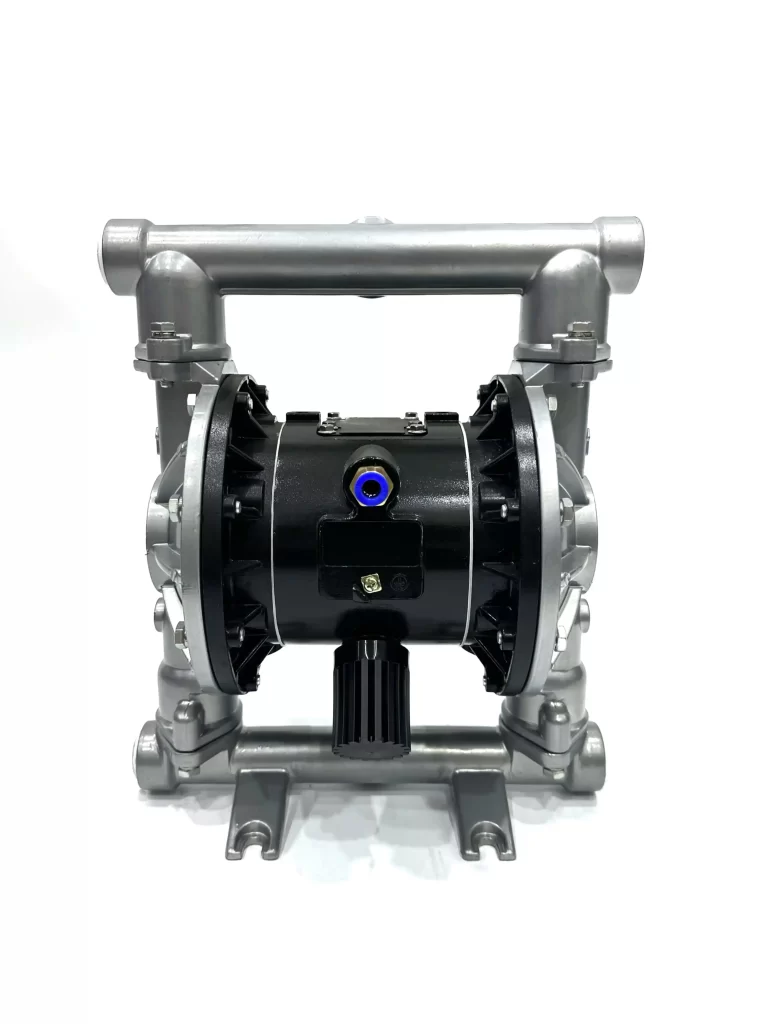

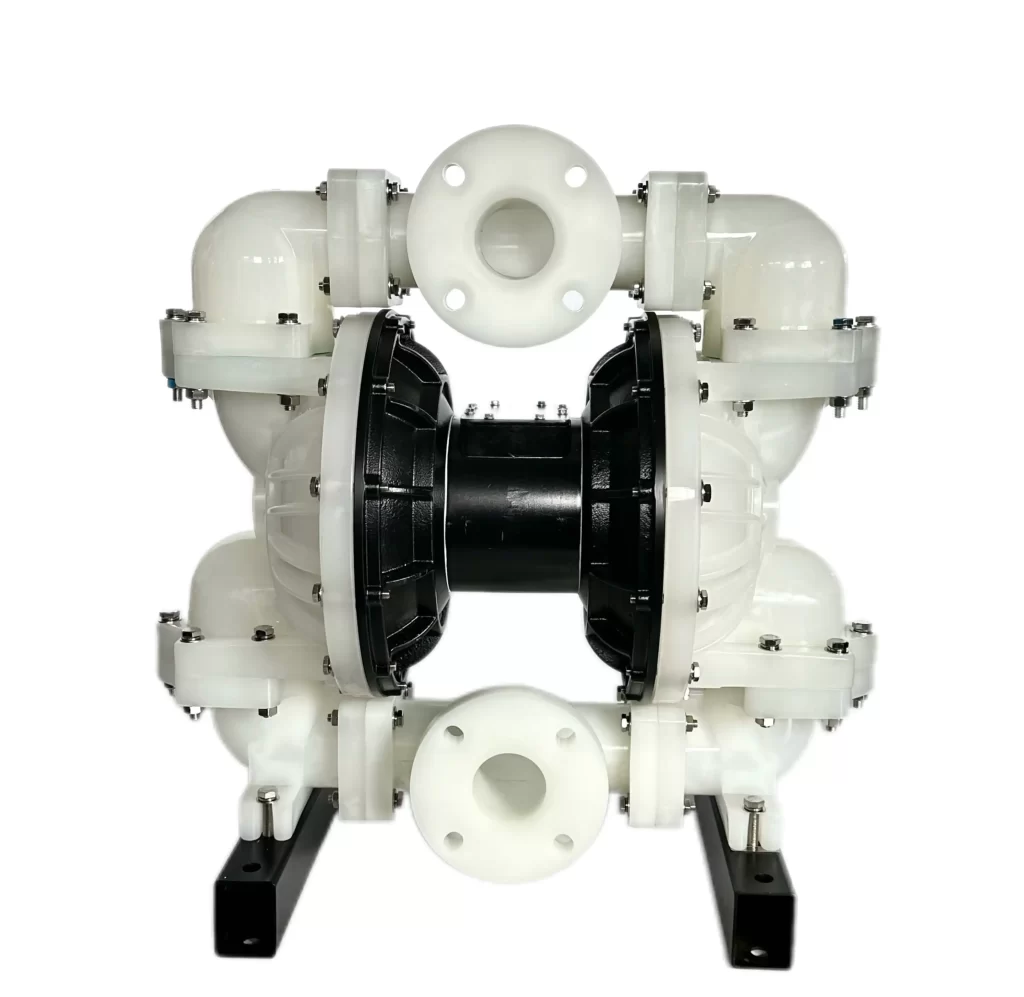

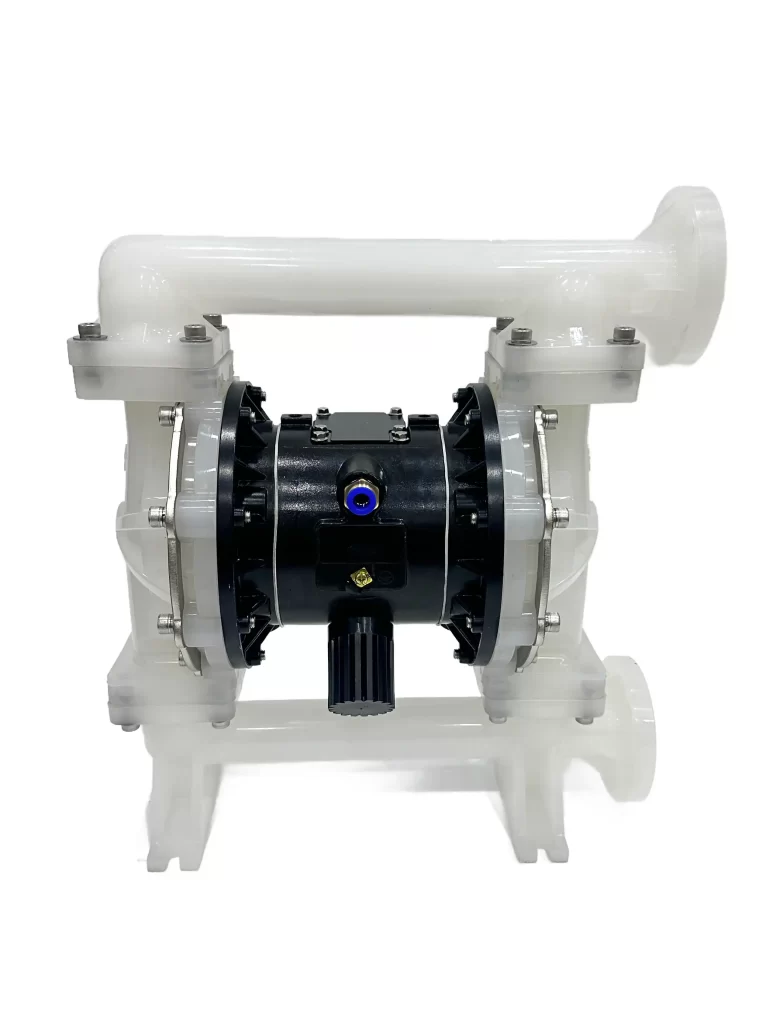

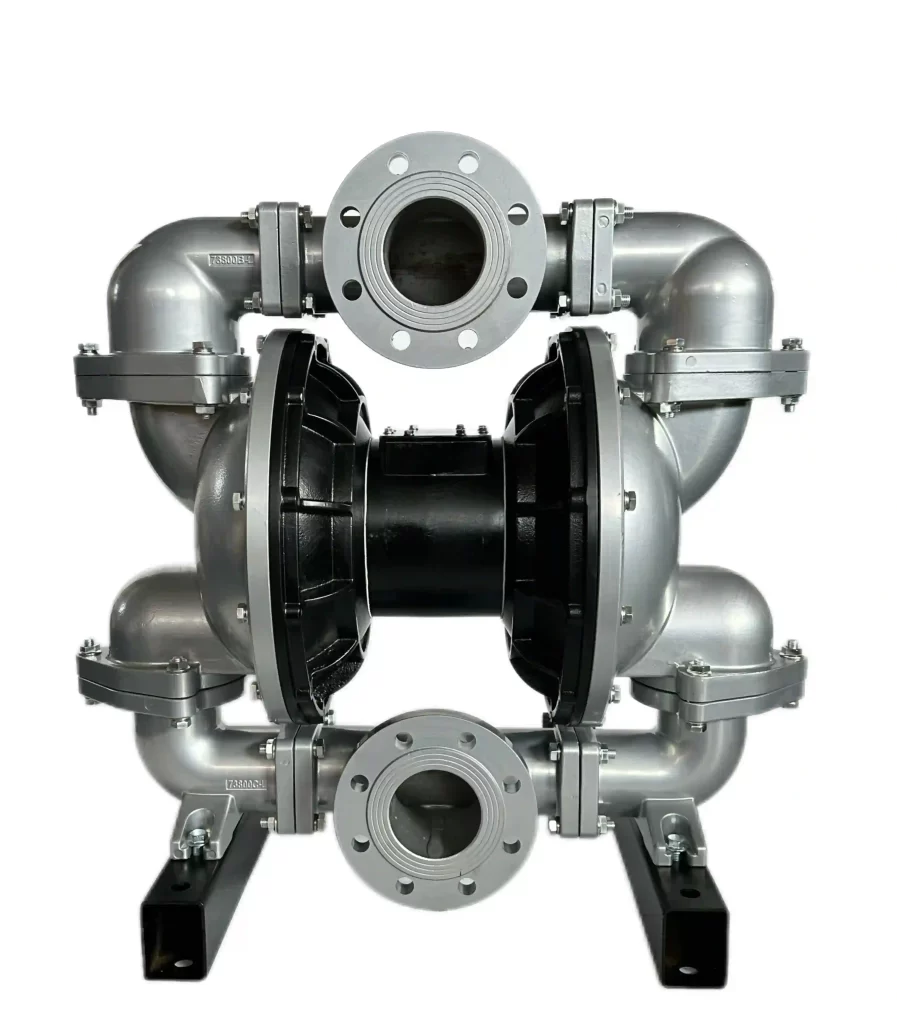

Main material: polypropylene,PVDF, aluminum alloy, stainless steel SS304, etc.
Max. flow
– 1041 L/min
Max. Self - Priming Height
– 5 m
Liquid
– Supports highly corrosive liquids
Please refer to the table below for detailed parameters.
Video Demonstration
Parameter Table
| Model | Inlet & Outlet Caliber (mm) |
Max. Head (m) |
Max. Flow | Max. Self - Priming Height | Max. Allowable Particle Diameter(mm) |
Compressed Air Inlet(mm) |
Max. Air Consumption (L/min) |
||
|---|---|---|---|---|---|---|---|---|---|
| (L/min) | (m³/h) | Dry Priming Head (m) |
Moisture Absorption(m) |
||||||
| QG-15 | 15/15 | 70 | 57 | 3.4 | 4 | 7.6 | 2.5 | 1/4 | 672 |
| QG-25 | 25/25 | 84 | 150 | 9 | 4 | 8 | 3.2 | 1/2 | 1120 |
| QG-40 | 40/40 | 84 | 378 | 22.7 | 5 | 8 | 4.8 | 1/2 | 2240 |
| QG-50 | 50/50 | 84 | 568 | 34 | 5 | 8 | 6.3 | 1/2 | 4900 |
| QG-65 | 65/65 | 84 | 568 | 34 | 5 | 8 | 8 | 1/2 | 4900 |
| QG-80 | 80/80 | 84 | 1041 | 62 | 5 | 8 | 10 | 3/4 | 9100 |
| QG-100 | 100/100 | 84 | 1041 | 62 | 5 | 8 | 10 | 3/4 | 9100 |
